Description
- Precision Cutting: Equipped with advanced cutting mechanisms, this panel saw delivers precise and accurate cuts, ensuring high-quality results for your woodworking projects.
- Safety Features: Safety is paramount in any woodworking environment. The PANEL SAW FPS-3200PLUS comes with robust safety features, including blade guards, emergency stop buttons, and safety sensors to protect operators from potential hazards.
- Ease of Use: Despite its advanced features, the PANEL SAW FPS-3200PLUS is designed to be user-friendly. Intuitive controls and ergonomic design make operation smooth and efficient, reducing the learning curve for new users.
- Versatility: Whether you’re cutting plywood, MDF, melamine, or other materials, this panel saw offers versatility to meet a variety of woodworking needs. It can handle straight cuts, angle cuts, and bevel cuts with precision.
- Durability: Built with high-quality materials and components, the PANEL SAW FPS-3200PLUS is designed to withstand the rigors of industrial woodworking environments. It’s durable, reliable, and built to last.
Technical Data
Dimension of Sliding Table (LxW) | 3200 X 375 mm |
Gross Cut Capacity | 3200 mm |
Width of Cut between saw Blade And Rip Fence | 1220 mm |
Saw Blade Diameter | 300 mm (Can use 355 mm Optional |
Height of Cut | 80 mm (Can cut 100 mm Optional |
Speed of Main Saw Spindle | 4000/6000rpm |
Spindle Diameter | 30 mm |
Tilting Saw Blade | 0-45° |
Main Motor | 7.5HP |
Scoring Saw Blade Diameter | 120mm |
Speed of Scoring Saw Blade | 8000r/min |
Scoring Spindle Diameter | 20 mm |
Scoring Motor | 1 HP |
Overall Dimensions | 3250 x 3250 x 900mm |
Main Saw Up/Down | Motorised |
Features Details
S.No | Image Display | Function | Detailed Description |
---|---|---|---|
1 | 7.5 Hp Main Saw Motor | for Sawing the material like Solid wood, Particle Board, MDF, plywood, Acrylic Etc. | |

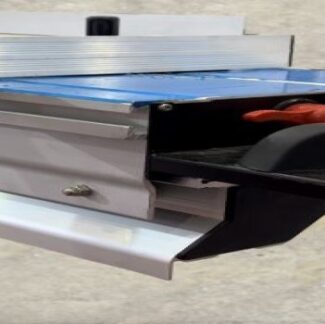

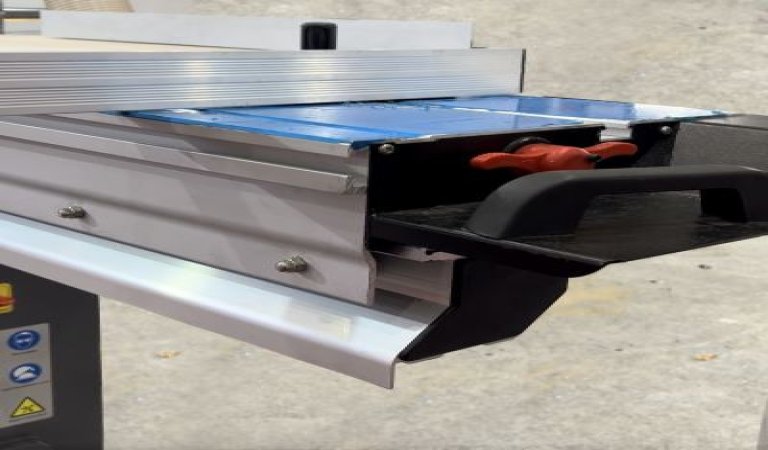

2 | European Aluminum Slider | European Style Double Layers high strength aluminum sliding table can support the large panels with high precision. Also integrated with multi stopper devise to stop slider at any position. | |
3 | Digital Readout Meter | For Angle Tilting For accurate Degree cutting. | |

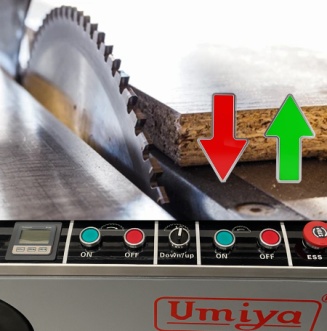

4 | Motorized Up-Down | Saw Blade is getting Up-down automatically by pressing Switch. No manual handle. | |

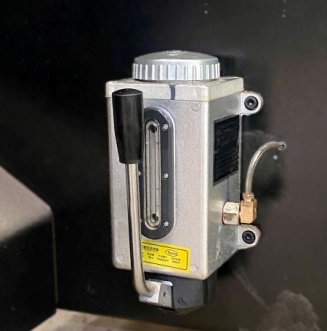

5 | Oil Lubrication Pump | Ensure that the inside of the machine is still lubricated after prolonged use, which effectively protects all parts of the machine. | |

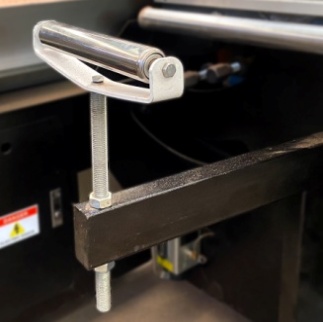

6 | Extra Support Roller | it is to Support the heavy weight sheets and wooden planks while cutting. Operator doesn’t need to put lots of effort to push the sheet while cutting. | |

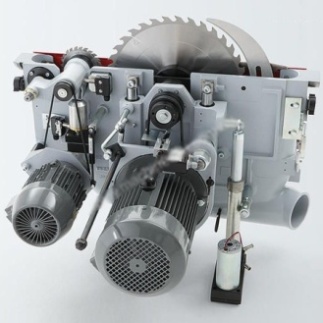

7 | Heavy Duty Saw Unit | This leads to precise burr-free cutting, smooth running, and without vibration. | |

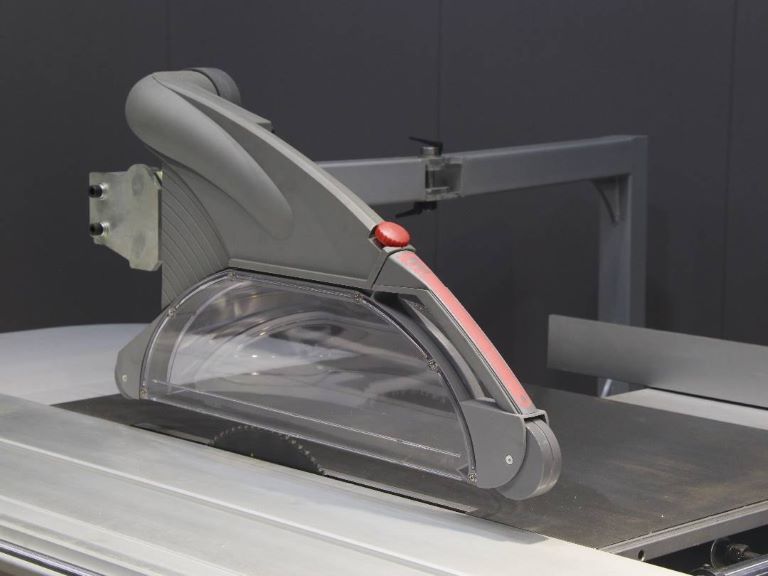

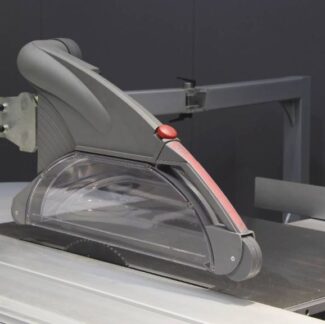

8 | European Style Overhead Guard (Optional) | The CE overhead guard is not only fascinating in its outer appearance but also with its powerful suction will keep the environment clean and make operation comfortable and easy |
