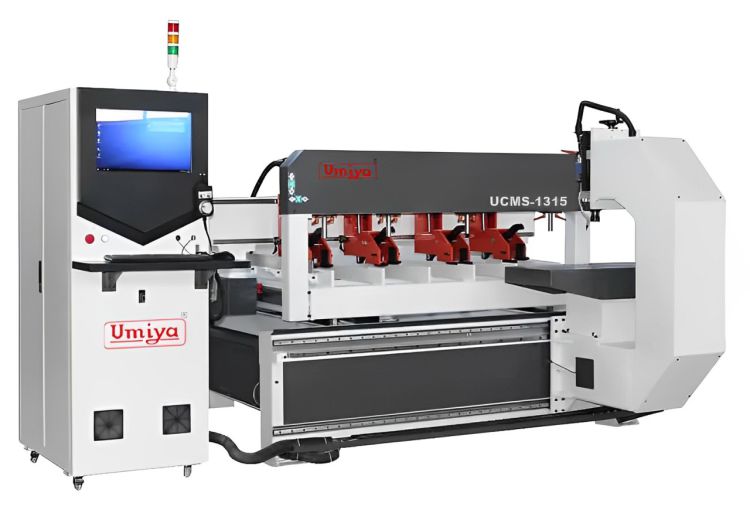

CNC MIlling Saw
The CNC Milling Saw is a versatile, high-performance machine designed for precise cutting, milling, and shaping of various materials. With advanced CNC technology, it offers automated control, high-speed operation, and exceptional accuracy, making it ideal for complex, detailed projects and high-volume production.
| Model | UCMS-1315 | UCMS-1320 | UCMS-1325 |
|---|---|---|---|
| Max Working Length | 1500mm | 2000mm | 2500mm |
| Max Working Width | 1300mm | 1300mm | 1300mm |
| Max Working Thickness | 10-150mm | 10-150mm | 10-150mm |
| Max Running Speed | 10000mm/min | 10000mm/min | 10000mm/min |
| Max Working Speed | 8000mm/min | 8000mm/min | 8000mm/min |
| Machine Power | 14.5KW | 14.5KW | 14.5KW |
| Spindle Rotate Speed | 18000rpm | 18000rpm | 18000rpm |
| Spindle Power | 9.7KW | 9.7KW | 9.7KW |
| System | NC Studio Control System | NC Studio Control System | NC Studio Control System |
| Motor | Servo Motor | Servo Motor | Servo Motor |
| Guide | Taiwan 25mm Guide | Taiwan 25mm Guide | Taiwan 25mm Guide |
| Inverter | 15KW | 15KW | 15KW |
| Ball Screw | Taiwan TBI Screw | Taiwan TBI Screw | Taiwan TBI Screw |
| Machine Size | 2100*3000*1800 | 2600*3000*1800 | 3100*3000*1800 |
Advantages:
- Automatic Processing Operation: Ensures stable quality and significantly improves efficiency, providing a solid foundation for subsequent lathe operations. This leads to smoother and faster processing.
- Numerical Control System: Utilizes a high-precision and stable numerical control system, enhancing the accuracy and reliability of operations.
- Advanced CNC System: Features an advanced CNC system that is simple and easy to control. Technicians with basic CAD knowledge can operate the machine without needing additional software applications.
- Strong Clamping Fixtures: Equipped with reliable clamping devices, the system can handle a wide clamping range and is capable of sawing multi-layer sheets simultaneously.
