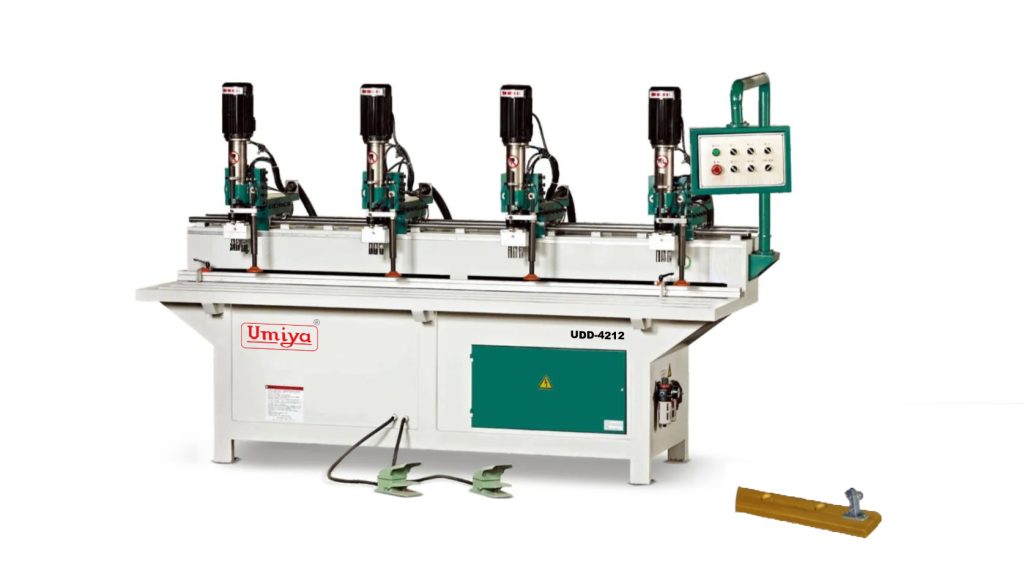

Multi Head Vertical Hinge Drilling Machine UDD-4212-4215-4216
The Multi Head Vertical Hinge Drilling Machine UDD-4212 is designed for high-precision hinge drilling. Featuring multiple spindles, it allows for simultaneous drilling of multiple hinge holes, enhancing productivity and efficiency. With adjustable settings for drilling depth and spacing, it ensures consistent, accurate results. Ideal for mass production in woodworking and furniture manufacturing, this machine offers reliability, durability, and ease of operation, making it an essential tool for businesses seeking to streamline their hinge drilling processes.
| Parameter | UMD-4212 | UMD-4215 | UMD-4216 |
|---|---|---|---|
| Max Drilling Capacity | φ 35mm | φ 35mm | φ 35mm |
| Max Drilling Depth | 70mm | 70mm | 70mm |
| Minimum Distance Between Two Centre Of Vertical Drill Heads | 180mm | 180mm | 180mm |
| Number Of Vertical Heads | 2 | 4 | 5 |
| Number Of Spindles | 6 | 12 | 15 |
| Spindle Speed | 2825rpm | 2825rpm | 2825rpm |
| Total Power | 1.1kw*2 | 1.1kw*4 | 1.1kw*5 |
| Overall Dimensions | 1700x1040x1850mm | 2550x1040x1850mm | 2550x1040x1850mm |
