FEB -460PRE

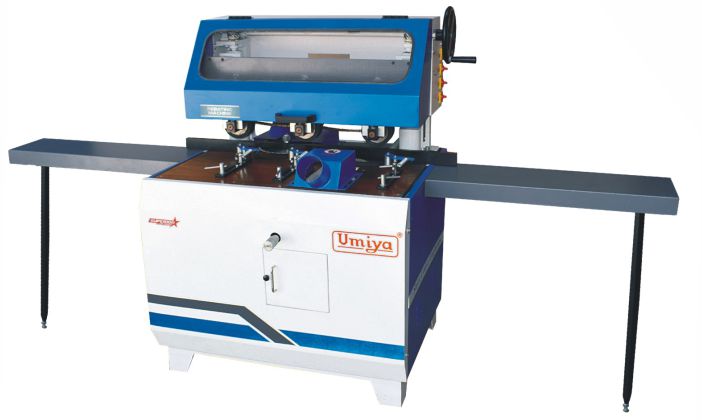

The Automatic Rebating Machine is a high-performance tool designed for precise and efficient rebate cutting in woodworking. It is engineered to handle a variety of materials, including wood and MDF, with ease. Featuring an adjustable cutting depth, the machine allows users to customize the rebate size according to their project requirements. The high-speed spindle ensures smooth and clean cuts, while the automatic operation improves productivity by reducing manual effort. Built with durable construction, it is suitable for high-demand environments. Equipped with user-friendly controls and essential safety features, the Automatic Rebating Machine is a reliable choice for professional woodshops.
Technical Data
| Specification | Model U-700 |
|---|---|
| Min. Working Thickness Planner & Width | 2” & 3” |
| Max. Working Thickness Planner & Width | 6” |
| Max. Rebating Capacity | 2” & 1” |
| Work Table Size | 42” x 28” |
| Horizontal Cutter Fine Adjustment | 8 mm |
| Horizontal Circular Saw Dia. x Bore | 10” x 1” |
| Vertical Circular Saw Dia. x Bore | 12” x 1” |
| Max. Moulding Cutter Thickness | 1” |
| Feeding Speed or Workpiece (Feet per Minute) | 12 |
| Circular Saw (Both)/Moulding Speed (RPM) | 5600 |
| Max. Moulding Cutter Dia. x Bore | 5 ¼” x 3/4” |
| Size of Dust Collection Port – Dia. | 4” |
| Elec. Motor for Hori. & Vertical Cutter (HP/RPM) | 3 & 2 / 1400 |
| Elec. Motor for Mould Cutter (HP/RPM) | 1 / 2800 |
| Elec. Motor for Workpiece Feeding (HP/RPM) | 1 / 1440 |
Features
- Automatic Operation: Reduces manual effort and increases productivity
- Adjustable Cutting Depth: Allows for customizable rebate sizes
- High-Speed Spindle: Ensures clean and smooth cuts
- User-Friendly Controls: Simple setup and operation
- Durable Construction: Built to last in high-demand environments
- Versatile: Ideal for various materials like wood and MDF
