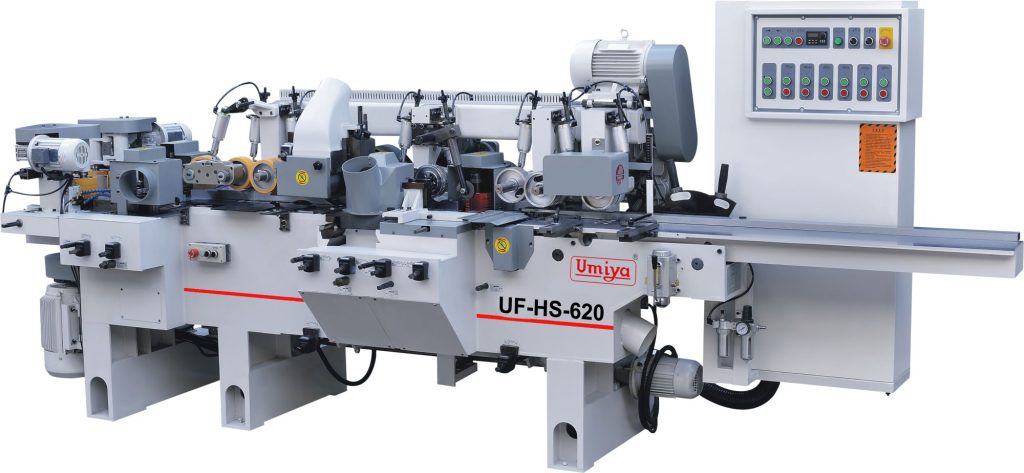

Four Side planner cum slicer (Horizontal) - ICON

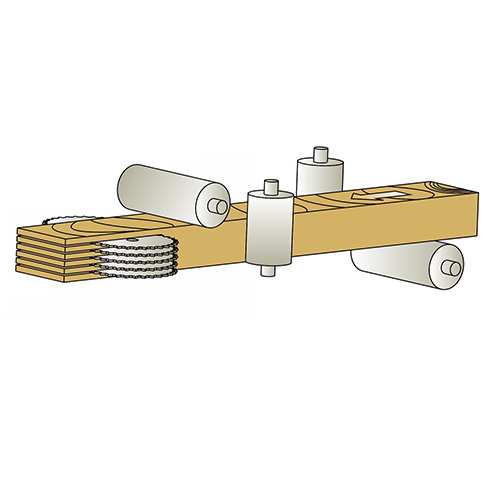

The ICON Four Side Planner Cum Slicer (Horizontal) is a versatile woodworking machine designed for precise planning and slicing of wood. It efficiently processes all four sides of a workpiece in one pass, ensuring smooth finishes and uniform thickness. Ideal for large-scale production, it offers adjustable settings for various wood types.
| Description | UF-HS-620 | UF-HS-616 |
|---|---|---|
| Working Width | 20-200mm | 20-160mm |
| Working Thickness | 10-120mm | 10-120mm |
| Min Working Length | 650mm/480mm | 650mm/480mm |
| Air Pressure Supply | 0.6mpa | 0.6mpa |
| Saw Shaft Diameter | ø40mm | ø40mm |
| Saw Shaft Speed | 4500 rpm | 4500 rpm |
| Saw Shaft Keyway | 12*4mm | 12*4mm |
| Main Shaft Diameter | ø40mm | ø40mm |
| Main Spindle Speed | 6000 rpm | 6000 rpm |
| Inverter Feed Speed | 5-35 m/min | 5-35 m/min |
| 1st Bottom Spindle Power | 5.5kw/7.5hp | |
| 1st Top Spindle Power | 5.5kw/7.5hp | |
| Right Spindle Power | 5.5kw/7.5hp | |
| Left Spindle Power | 5.5kw/7.5hp | |
| Left & Right Saw Power | 15kw/20hp*2 | |
| Beam Lifting Power | 0.75kw/1hp | |
| Feeding Power | 4kw/5.5hp | |
| Rear Auxiliary Feeding Power | 0.37kw/0.5hp*2 | |
| Overall Power | 21.25kw/29hp | 28.75kw/39hp |
| 1st Bottom Cutter Diameter | ø125mm | ø125mm |
| 1st Top Cutter Diameter | ø125-ø180mm | |
| Right Cutter Diameter | ø125-ø180mm | |
| Left Cutter Diameter | ø125-ø180mm | |
| Left & Right Saw Diameter | ø180-ø250mm | |
| Dust outlet Diameter | 2*ø150mm + 4*ø120mm | ø150mm |
| Overall Size | 4300x1600x1800mm |
