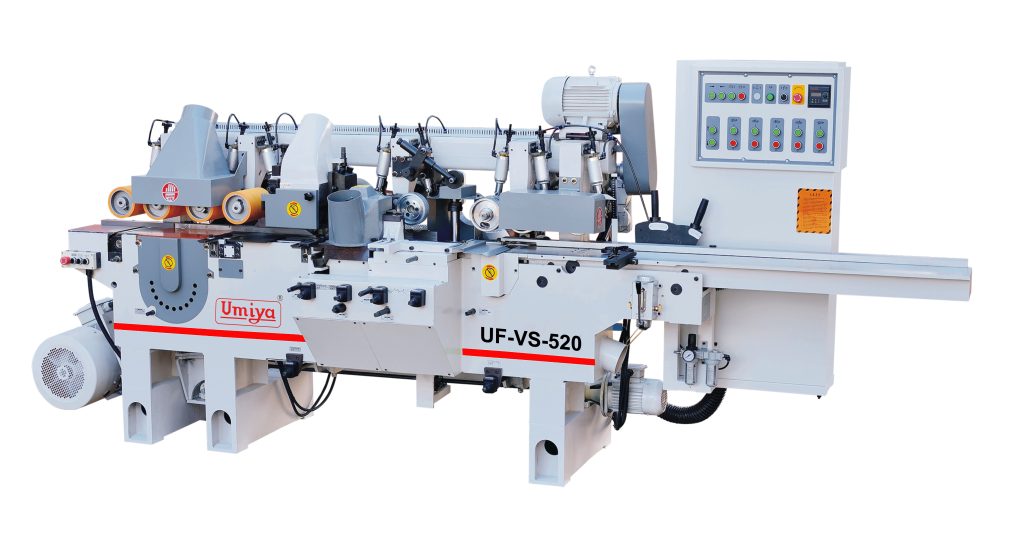

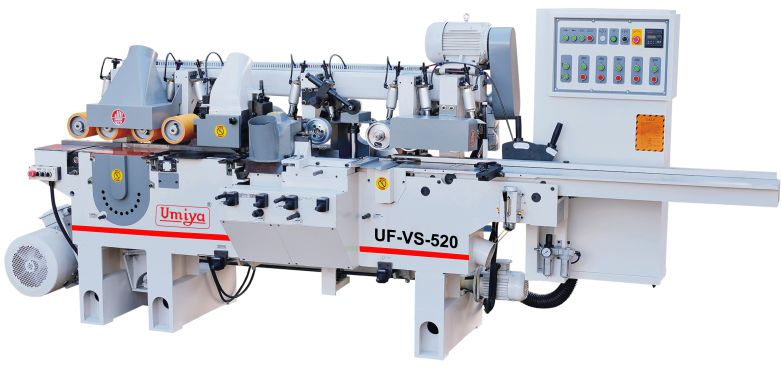

Four Side planner cum slicer (Vertical)
Four Side planner cum slicer (Vertical) is a versatile woodworking machine designed for precise planning and slicing of wood. It efficiently processes all four sides of a workpiece in one pass, ensuring smooth finishes and uniform thickness. Ideal for large-scale production, it offers adjustable settings for various wood types.
| Description | UF-VS-520 |
|---|---|
| Working Width | 20-200mm |
| Working Thickness | 8-120mm |
| Min Working Length | – |
| Air Pressure Supply | 0.6mpa |
| Saw Shaft Diameter | ø40mm |
| Saw Shaft Speed | 4500 rpm |
| Saw Shaft Keyway | 16*5mm |
| Main Shaft Diameter | ø40mm |
| Main Spindle Speed | 6000 rpm |
| Inverter Feed Speed | 5-35 m/min |
| 1st Bottom Spindle Power | 5.5kw/7.5hp |
| 1st Top Spindle Power | – |
| Right Spindle Power | 5.5kw/7.5hp |
| Left Spindle Power | 5.5kw/7.5hp |
| Bottom Saw Power | 22kw |
| Beam Lifting Power | 0.75kw/1hp |
| Feeding Power | 4kw/5.5hp |
| Rear Auxiliary Feeding Power | – |
| Overall Power | 38.25kw/51hp |
| 1st Bottom Cutter Diameter | ø125mm |
| 1st Top Cutter Diameter | ø125-ø180mm |
| Right Cutter Diameter | ø125-ø180mm |
| Left Cutter Diameter | ø125-ø180mm |
| Bottom Saw Diameter | ø300 |
| Dust outlet Diameter | 2*ø150mm + 4*ø120mm |
| Overall Size | 4300x1400x1800mm |
