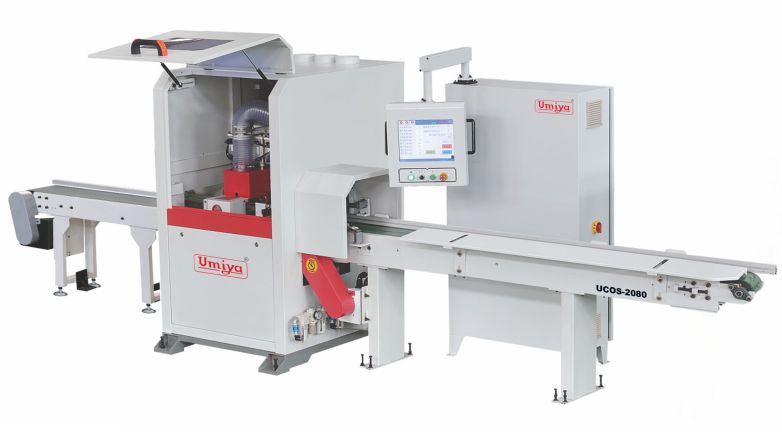

Optimising Cut off saw
The Optimizing Cut-Off Saw is a high-speed, intelligent cutting solution designed to maximize material yield and minimize waste. With advanced sensors and automation, it ensures precise, efficient, and optimized cutting. Ideal for woodworking industries, it enhances productivity, reduces labor costs, and improves overall accuracy in material processing.
| Description | UCOS-2080 |
|---|---|
| Working Width | 20-200mm |
| Working Thickness | 12-80mm |
| Maximum Cutting Size | 120x80mm |
| Length of Feeding Work Table | 3000mm |
| Width of Work Table | 330mm |
| Min Ingoing Length | 400mm |
| Feeding Speed | 80m/min |
| Saw Blade Diameter | 455mm |
| Saw Blade Speed | 3500 rpm |
| Lifting Motor Power | 3kW |
| Feeding Motor Power | 3kW |
| Outfeed Motor Power | 0.75kW |
| Pressing Wheel Lifting Power | 0.18kW |
| Total Power | 12.43kW |
| Air Pressure | 0.6MPa |
| Dust Suction Diameter | 140mm × 2 nos |
| Exhaust Speed | 30m/s |
| Overall Dimensions (L×W×H) | 7000×1400×1800mm |
Professional Production
- Usage:Used for wood cutting.
- Material Length:Can cut raw materials up to 1m, 2m, 4m, and 6m.
- Automation: Simply enter the program for automatic cutting and feeding.
- Finished Product Handling: Finished products are transported to one side by conveyor belt
Main Features
- Truncation Mode:Fully automatic industrial control saw blade cutting (both long and short can be customized).
- Production:
– First type: Manual feeding and automatic receiving.
– Second type: Manual feeding and manual receiving.
- Operation Mode:Touch screen operation, simple and efficient.
- Pressing Mode:Pneumatic pressing material.
- Feeding Mode:Servo feeding, automatic cutting according to input program.
- Device:Safe, stable, efficient, and precise.
