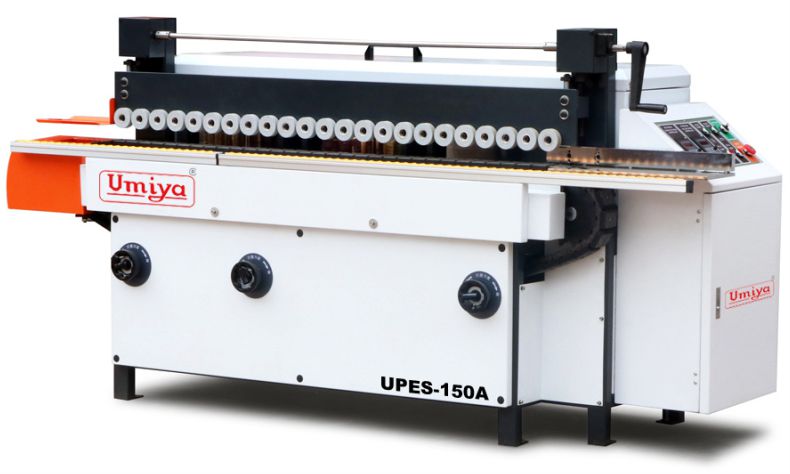

Automatic Edge Brush Sander
The Automatic Edge Brush Sander is a high-performance machine engineered for precision sanding and finishing of edges, catering to the needs of industries like woodworking, furniture manufacturing, and cabinetry. This innovative machine automates the edge sanding process, ensuring consistent, high-quality results while minimizing manual effort. Its advanced design is ideal for achieving smooth, refined surfaces on straight, curved, or contoured edges with ease.
Technical Data
| Property | Value |
|---|---|
| Model | UPES-150A |
| Brush Roller Diameter | 300mm |
| Sand Roller Diameter | 180mm |
| Roller Height | 150mm |
| Min Working Width | 100mm |
| Min Working Length | 150mm |
| Working Thickness | 5-40mm |
| Sandpaper Grade | 120#-600# |
| Lifting Way | Electric Control |
| Conveyor Motor | 0.75KW |
| Lifting Motor | 0.55KW *3 |
| Main Motor | 0.75KW *3 |
| Total Power | 4.65KW |
| Conveyor Speed | Inverter Control |
| Voltage | 380V/50HZ/3PH |
| Roller Speed | Inverter Control |
| Dimension | 2500×900×1200mm |
