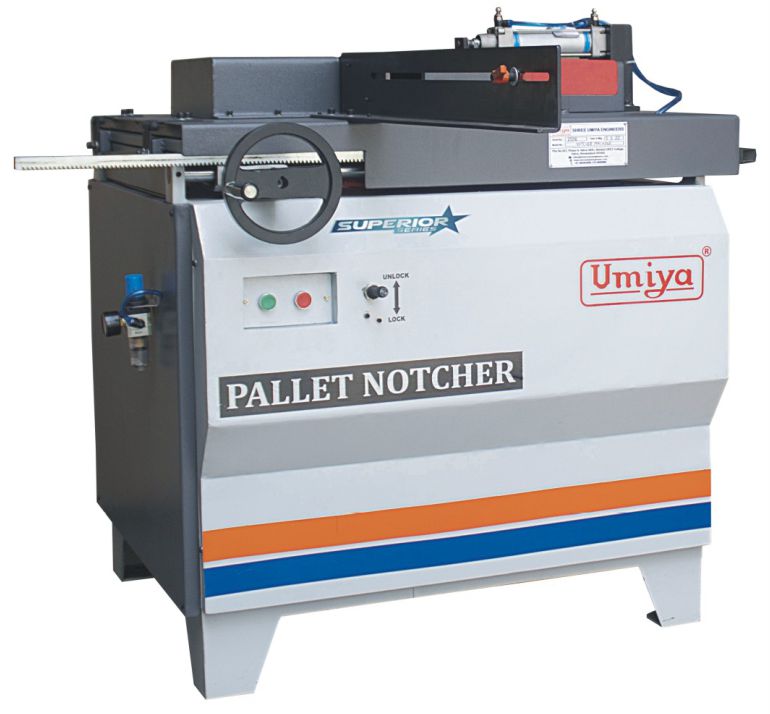

Single Head Pallet Notcher
A Single Head Pallet Notcher is a specialized machine designed for creating notches in the stringers of wooden pallets, ensuring proper interlocking between the pallet’s horizontal beams and vertical deckboards. This machine features a single notching head, which allows for efficient and precise cuts on pallet stringers, enhancing the overall structural integrity and functionality of the pallet.
Technical Data
| Specification | Details |
|---|---|
| Power | 10 Hp |
| Capacity | 3 Pcs At A Time |
| Production Capacity | 500 Pcs/Hour |
| Operator | 1 |
| Suitable | Stringer Notcher Pallet |
| Max Stringer Length | 1200mm |
| Max Stringer Width | 50mm |
| Max Notcher Depth | 50mm |
| Max Notcher Width | 230mm |
| Tolerance | ≤1mm |
| Type | Manual |
Features
- Single Notching Head: Efficiently notches pallet stringers with a single cutting head.
- Adjustable Settings: Customizes notch depth and width for different pallet designs.
- Automated Operation: Reduces manual labor with consistent and precise cuts.
- High Productivity: Ideal for medium-scale pallet production with fast cutting speeds.
- Durable Construction: Built with high-quality materials for long-lasting performance and low maintenance.
