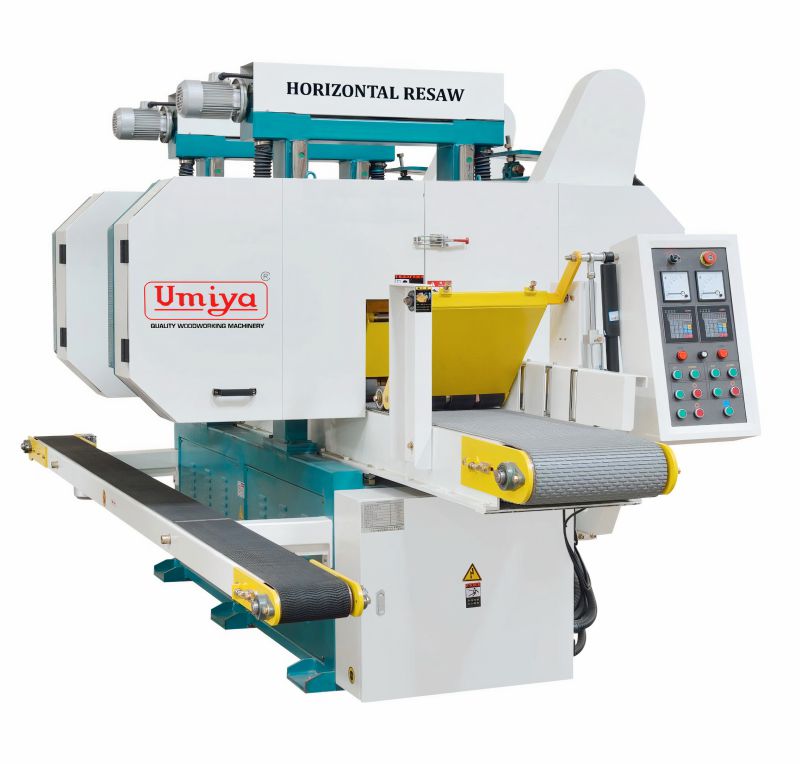

Horizontal Resaw (Double Head)
The Horizontal Resaw (Double Head) is designed for efficient and precise wood slicing, maximizing yield with minimal waste. Its robust frame ensures stability, while the advanced blade system delivers smooth, high-speed cutting. Ideal for producing thin boards from large timber, it enhances productivity and accuracy in woodworking operations.
| Model | URS-4020D |
|---|---|
| Max Processing Width | 400mm |
| Max Processing Thickness | 200mm |
| Conveyor Belt Width | 385mm |
| Distance from band saw blade to worktable | 3-60mm |
| Saw Wheel Diameter | 711mm |
| Feeding Speed (adjustable) | 0-16m/min |
| Saw Wheel Motor | 25HP * 2 NOS |
| Feeding Motor | 3HP |
| Return Conveyor Belt Motor | 0.5HP |
| Lift Motor | 0.25HP * 2 NOS |
| Diameter of Suction Hood | 100mm * 4 NOS |
| Saw Blade Size | 4572*27-40*0.9 |
| Sawing | 1.4-1.6mm |
