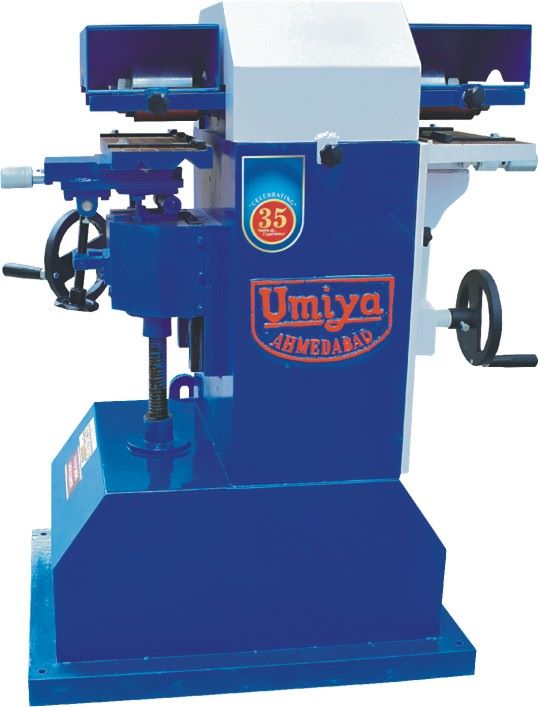

The Two Side Moulder U-412 is a high-performance, precision woodworking machine designed for shaping and profiling both sides of a workpiece simultaneously. Widely used in furniture manufacturing, cabinetry, and moldings, the U-412 provides versatility and efficiency for industries that require consistent, high-quality finishes on wood and wood-based materials. With its robust construction, advanced features, and precise control, the Two Side Moulder U-412 is an essential tool for any woodworking shop looking to achieve superior results in a wide range of applications.
Technical Data
| Specification | Main Side | 2nd Side |
|---|---|---|
| Work Table Size | 18”x6” | 17”x7” |
| Up/Down Movement Of Table | 4” | 3” |
| Longitudinal Movement Of Table | 2” | 1” |
| Table Tilt – Degree | 15° | – |
| Feeding Speed (Feet Per Minute) | 24 | 24 |
| Moulding Block Speed (RPM) | 4200 | 4200 |
| Max. Moulding Block Width | 4 ½” | 3” |
| Moulding Block Diameter | 3 ¾” | 3 ¾” |
| Power Required HP/RPM | 3/1440 | 3/1440 |
Features
1. Dual-Side Molding Capability
The U-412’s most notable feature is its ability to mold both sides of a workpiece at the same time. This dual-side operation reduces the number of passes needed, increasing production efficiency and minimizing handling time.
2. Adjustable Work Tables
The machine features two adjustable work tables—one for the main side and one for the second side
3. Table Tilt Mechanism
The main side table of the U-412 has a tilt function that allows it to be adjusted up to 15°. This tilt feature is useful for creating angled cuts or profiles, providing added versatility for complex molding tasks.
