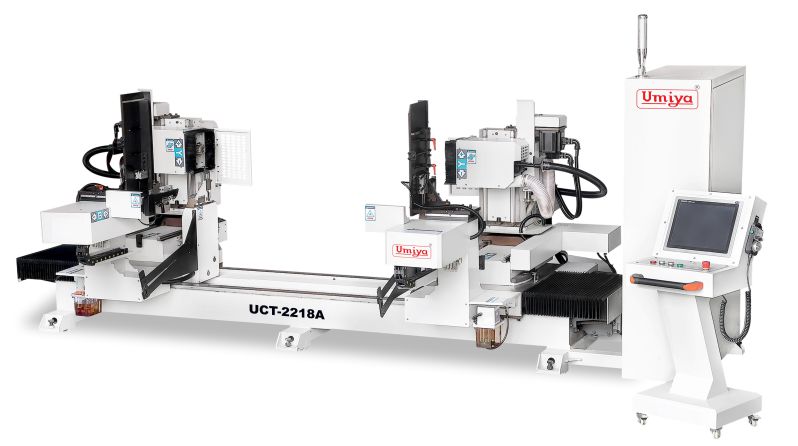

Double Side CNC Round End Tenoner
The Double Side CNC Round End Tenoner is a high-precision machine designed for automated, double-sided tenon cutting with round ends. Ideal for mass production of furniture and wooden structures, it ensures consistent quality, reduced labor, and enhanced efficiency. The CNC control offers precise adjustments for superior joinery.
FEATURES:
- Automatic feeding and discharging, equipped with advanced numerical control system, simple and easy operation, high degree of automation, high production ericiency, processing efficiency can reach 22 per minute.
- Automatic clamping and positioning, simultaneous processing at both ends, efficient and accurate, reducing labor inteneity of workers.
- The structure of the all-enclosed hood adopte the centralized dust removal design, so the external dust is small, and it is clean and environmentally friendly.
- It is capable of processing tenon of various shapes such as square, rectangle, waist round, round, and oblique tenon, etc. It is widely used for the tenon processing of furniture such as doors, tables and chairs
man-knife separation, effectively prevent accidents at work
| Specification | Value |
|---|---|
| Model | UCT-2218A |
| Processing Length Range | 220-2000mm |
| Max. Processing Width Range | 10-180mm |
| Max. Processing Thickness Range | 5-70mm |
| Tongue Length Range | 40mm |
| Tenon Width | 150mm |
| Mortise Thickness | 80mm |
| Spindle Speed | 12000r/min |
| Total Power | 17kw |
| Dimensions | 4280*2300*1980mm |
