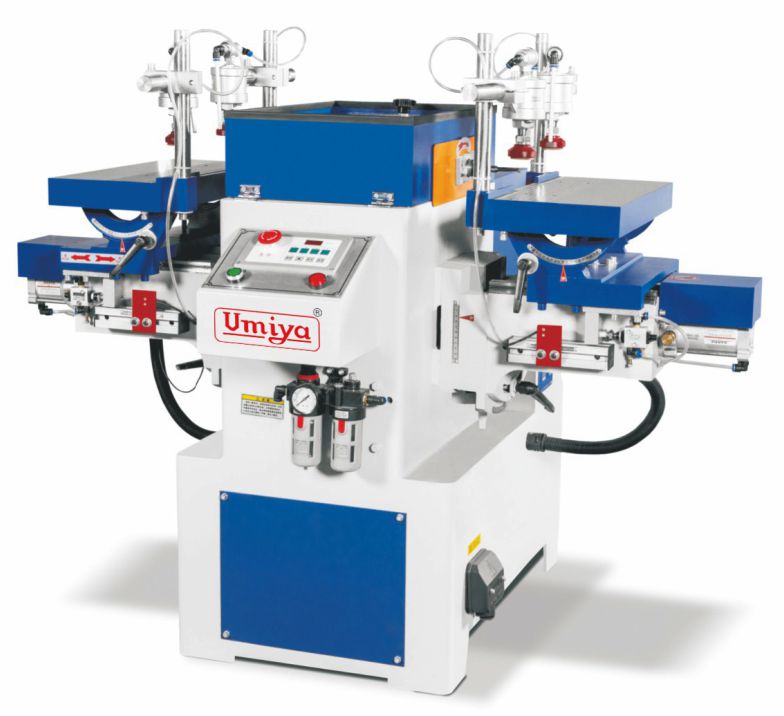

Double End Oscillating Mortiser
The Double End Oscillating Mortiser is a high-precision woodworking machine designed for creating accurate mortises on both ends of a workpiece simultaneously. Its oscillating feature ensures clean cuts, reduces tool wear, and enhances efficiency. Ideal for furniture production, it offers adjustable settings for various mortise sizes.
| Specification | Value |
|---|---|
| Working Table Lift Stroke | 80mm |
| The Tilted Angle Of Working Table | ±20° |
| Max. Mortise Width | 120+2Rmm |
| Max. Mortise Depth | 60mm |
| Spindle Speed | 15000r/min |
| Install Power | 4HP |
| Overall Size | 1500x1200x1230mm |
Features:
- Two Tables Built in the Front and Back of the Machine Provides High Efficiency Mortising operations.
- Air Clamps Provides Convenient Work Piece Handling Mortising Width is Adjustable.
- Moving parts of the main shaft sliding along the precision cylindrical guide rail.
- High Precision spindle for heavy cutting.
- Spindle moving frequency is high to ensure the quality and efficiency of processing.
- Through the digital display, easy to adjust the groove width.
