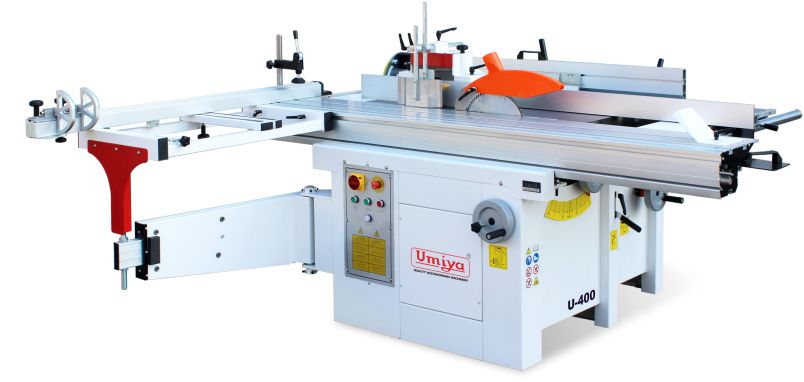

Universal Combined Planner Machine
The Universal Combined Planner Machine is a state-of-the-art woodworking tool designed to provide unmatched precision, versatility, and efficiency. Tailored to meet the demands of modern woodworking and industrial applications, this machine combines multiple functions into a single, compact unit, making it an indispensable tool for professionals and hobbyists alike. Whether you’re crafting bespoke furniture, performing industrial-scale operations, or tackling home improvement projects, this machine ensures seamless performance and impeccable results.
Technical Data
| Feature | U-300 | U-400 |
|---|---|---|
| Surface Planner | ||
| Working Tables | 300×1500 mm | 400×1800 mm |
| Cutter Block Diameter | 70 mm | 70 mm |
| Cutter Block Rotation Speed | 5700 rpm | 5700 rpm |
| No. Of Knives | 3 nos | 3 nos |
| Knives Dimensions | 300x20x3 mm | 400x25x3 mm |
| Max Table Adjustment | 4 mm | 4 mm |
| Thickness Planner | ||
| Working Table | 300×660 mm | 400×760 mm |
| Feed Speed | 7 m/1’ | 7 m/1’ |
| Working Height | 4-220 mm | 4-220 mm |
| Mortiser | ||
| Working Table | 220×500 mm | 250×500 mm |
| Longitudinal/Transversal/Vertical Stroke | 205/90/95 mm | 205/90/95 mm |
| Chuck (M18*1.5-S) | 0-16 mm | 0-16 mm |
| Panel Saw | ||
| Working Table | 220×1000 mm | 326×1112 mm |
| Shaft Rotation Speed | 4500/7000 rpm | 4500/7000 rpm |
| Main Saw Blade | 250×30 mm | 300×30 mm |
| Scoring Saw Blade | 90×22 mm | 90×22 mm |
| Cutting Height At 45°/90° | 50/80 mm | 75/95 mm |
| Max. Distance Between Blade And Fence | 500 mm | 730 mm |
| Blade Inclination | 45° | 45° |
| Spindle Moulder | ||
| Working Table | 220×1000 mm | 290×1112 mm |
| Shaft Rotation Speed | 2000/3100/4400/7000 rpm | 2000/3100/4400/7000 rpm |
| Standard Shaft Diameter | 30/35/40 mm | 30/35/40 mm |
| Shaft Vertical Stroke | 115 mm | 115 mm |
| Max. Tool Diameter | 160 mm | 180 mm |
| Max Tenoning Depth | 55 mm | 65 mm |
| Sliding Table (Length X Width) | 1250×315 mm | 1800×315 mm |
| Motor | ||
| Motor Power | 3 Hp | 4 Hp |
Features
- Multi-Functional Design: Combines planning, thicknessing, rebating, and more in one compact unit.
- Precision Engineering: Delivers flawless finishes with advanced cutter heads and adjustable tables.
- Heavy-Duty Construction: Built with industrial-grade materials for maximum durability and stability.
- Energy Efficiency: Equipped with a powerful, energy-saving motor for consistent performance.
- User-Centric Controls: Intuitive interface and digital options for seamless operation.
