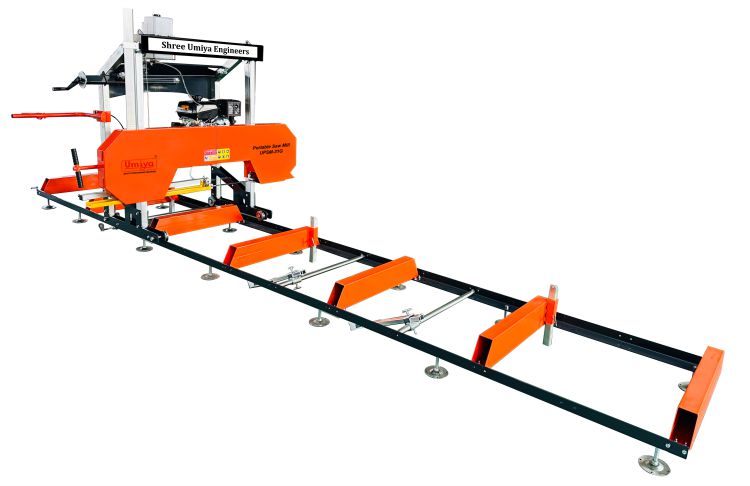

Portable Saw Mill
Portability :- As the name implies, portable sawmills are designed to be moved to various locations. They are usually compact, mounted on wheels or trailers, allowing easy transportation from one site to another. This portability allows users to mill timber directly at the logging site, minimizing the need for hauling logs long distances.
Frame and Track System :- A portable sawmill typically includes a strong metal frame mounted on rails or tracks. The track system is used to guide the log through the cutting process, ensuring accurate cuts. The frame holds the engine, the saw blade, and the log carriage, providing structural support for the entire system.
Log Carriage :- The log carriage is a key component of the portable sawmill. It holds the log in place and moves it through the saw blade. Many portable sawmills feature an adjustable log carriage, which allows for different log sizes to be milled efficiently. Some models offer manual or hydraulic log feed systems, making it easier to position and advance logs through the saw.
TECHNICAL SPECIFICATIONS:
| Specification | UPSM-26E/26G | UPSM-31E/31G |
|---|---|---|
| Motor Power | 7.5HP Electric Motor or 9HP Gasoline Engine (301cc) | 10HP Electric Motor or 15HP Gasoline Engine (420cc) |
| Motor Voltage (E Model) | 400V, 50Hz, 3Phase | 400V, 50Hz, 3Phase or |
| Cutting Capacity | 660*178*2794mm (26”*7”*110”) | 790*178*2794mm (31”*7”*110”) |
| Frame | 4pcs | 4pcs |
| Blade Size | 3690*34*0.9mm (145”*1-1/4”*0.035”) | 3960*34*0.9mm (156”*1-1/4”*0.035”) |
| Standard Track Size | 4000x900mm (157”x35.4”) | 4000x1030mm (157”x40.5”) |
| Safe Cutting Speed | 13-15s/m | 13-15s/m |
| Blade Speed | 17m/min | 17m/min |
| Distance Teeth | 22mm (0.86”) | 22mm (0.86”) |
| Blade Wheel Diameter | 480 mm (18.8”) | 480 mm (18.8”) |
| Dimensions | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) |
| Packaging Size | 2080*610*830mm | 2080*610*830mm |
Images
The most important highlights at a glance
Features
- Portability: Designed to be easily transported to different locations, portable sawmills are typically mounted on wheels or trailers for convenient movement to job sites, making them ideal for milling logs directly at the cutting site.
- Compact Design: Portable sawmills are compact and often modular, allowing for easy setup and teardown. This makes them well-suited for use in areas where space is limited.
- Adjustable Cutting Heights: Many portable sawmills allow users to adjust the height of the saw blade, enabling the cutting of lumber at different thicknesses, from thin planks to thicker beams.
- Track System: Most portable sawmills feature a track system, which guides the log through the saw blade. This ensures that the cut is straight and precise. The tracks can be adjusted in length to accommodate logs of various sizes.
- Log Carriage: The log carriage holds the log in place and moves it through the cutting blade. Some models feature hydraulic or manual systems for easier handling of logs and ensuring smooth movement.
- Power Source: Portable sawmills are powered by either gas, diesel, or electric motors, with engine sizes typically ranging from small 5 HP engines for light-duty models to larger engines of 20-30 HP for heavy-duty applications.
- Saw Blade: The most common type of saw blade used in portable sawmills is a band saw, which offers precise and smooth cuts while generating less waste. Some sawmills also use circular saws depending on the specific needs of the user.
- Hydraulic or Manual Operation: Higher-end portable sawmills often use hydraulics to move the log, adjust the height of the blade, or feed the log into the blade. Manual models require more operator input but are typically more affordable.
