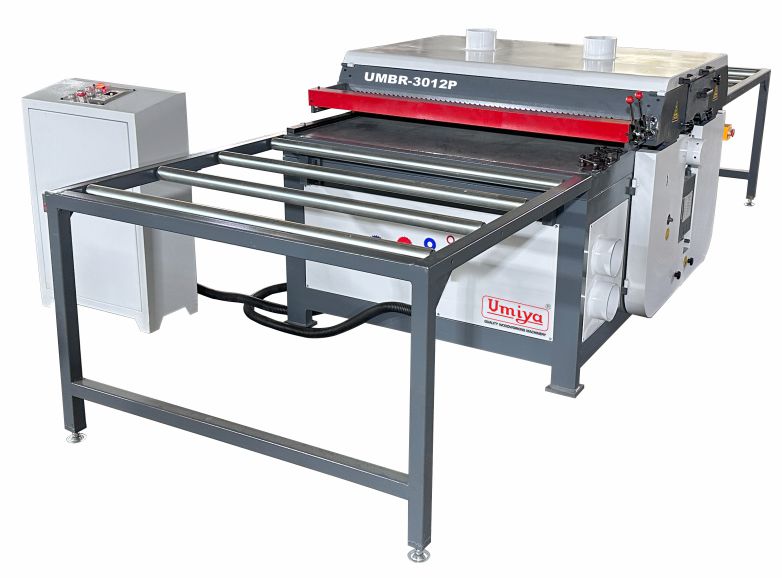

Multi Blade Rip Saw For Panel Sheet
Furniture Manufacturing: In the production of furniture, multi-blade rip saws are used to cut large panels of wood or wood-based materials into smaller, more manageable sections for tables, cabinets, and shelves.
Cabinet Making: Cabinet makers use these saws to cut precise, consistent pieces for building cabinet components, ensuring that the panels are sized accurately for assembly.
Plywood Mills: In plywood mills, multi-blade rip saws are used to slice large sheets of plywood into narrower panels, often for further processing into products like flooring, wall panels, or furniture components.
Packaging and Building Materials: Multi-blade rip saws are also used in industries where wood is cut into strips for packaging materials, construction components, or other building products.
TECHNICAL SPECIFICATIONS:
Multi-Blade Rip Saw Specifications
| Description | UMBR-3012P | UMBR-5012P |
|---|---|---|
| Max Processing Width | 1220mm | 1220mm |
| Min Processing Width | 200mm | 200mm |
| Max Processing Thickness | 30mm | 50mm |
| Min Processing Width | 5mm | 5mm |
| Min Cutting Length | 550mm | 600mm |
| Saw Blade Diameter | Ø205mm | Ø255mm |
| Main Saw Motor | 22kw | 45kw |
| Feeding Motor | 1.5kw | 3kw |
| Total Power | 2.5kw | 48kw |
| Feeding Speed | 0-12m/min | 0-12m/min |
| Overall Size | 2000*1800*1250mm | 2800*1800*1450mm |
Images
The most important highlights at a glance
Features
- Multiple Circular Blades: The saw features several circular blades arranged on a single arbor or shaft. These blades allow for multiple cuts simultaneously, which is ideal for cutting large panel sheets into smaller, uniform pieces.
- Adjustable Blade Spacing: The spacing between the blades can be adjusted to control the width of each cut. This flexibility is essential when cutting different sizes of strips or boards from a single panel.
- Fast Feeding Speed: Multi-blade rip saws offer fast feed rates (up to 32 meters per minute or more), allowing for quick processing of large quantities of material. The feed rate can be adjusted to accommodate different materials and thicknesses, ensuring precise cuts without overloading the machine.
- Consistent Cut Quality: The synchronized movement of multiple blades ensures consistent cutting quality. This reduces the need for further finishing, such as sanding, on the cut edges.
