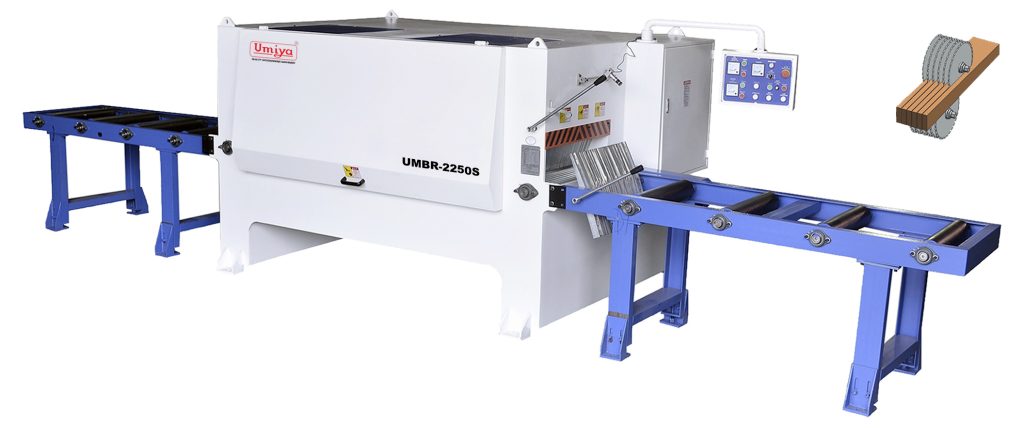

Multi Blade Rip Saw for wooden slab UMBR-2250S
Maximum Cutting Thickness :- Likely designed for larger wooden slabs, the UMBR-2250S may have a maximum cutting thickness that can range from 200 mm to 250 mm (8 to 10 inches), depending on the model’s specifications.
Maximum Working Width :- The saw may accommodate up to 300 mm (12 inches) in working width, or even more, depending on the specific design. This would mean it can cut large boards or slabs with widths ranging from 200 mm to 300 mm or slightly higher.
Motor Power :- The motor powering the UMBR-2250S is likely a high-power motor, possibly around 40 to 50 HP or more, to handle heavy-duty cutting tasks and ensure smooth, continuous operation even with larger slabs.
Cutting Speed (RPM) :- Similar to other multi-blade rip saws, the Cutter RPM would probably be in the range of 2800 RPM. This ensures fast, efficient cutting while minimizing downtime.
TECHNICAL SPECIFICATIONS:
| Specification | UMBR-1040S | UMBR-1230S | UMBR-1630S | UMBR-1640SVM | UMBR-1750S | UMBR-2250S |
|---|---|---|---|---|---|---|
| Working Thickness | 25-100mm | 20-120mm | 30-160mm | 30-160mm | 20-170mm | 20-220mm |
| Max Working Width | 400mm | 300mm | 300mm | 400mm | 500mm | 500mm |
| Min Working Length | 850mm | 500mm | 850mm | 850mm | 1500mm | 1500mm |
| Feeding Speed | 0-23m/min | 0-23m/min | 0-23m/min | 0-20m/min | 0-23m/min | 0-14m/min |
| Machine Total Power | 56.2KW | 50.5KW | 84.2KW | 93KW | 77KW | 93KW |
| Overall Size | 2950x1850x1580mm | 2720x1820x1560mm | 3070x1820x1620mm | 2040x2030x1680mm | 2850x2040x1650mm | 3160x2100x1670mm |
| Saw Blade | ⌀230x⌀70mm | ⌀230x⌀60mm | ⌀280x⌀70mm | ⌀285x⌀80mm | ⌀300x⌀70mm | ⌀350x⌀70mm |
Images
The most important highlights at a glance
Features
- Maximum Cutting Thickness :- Up to 225 mm (8.8 inches), making it suitable for cutting large, thick wooden slabs or beams into thinner sections.
- Maximum Working Width :- Typically, 200 mm as a standard working width, but can handle a maximum feeding width of 300 mm. This provides flexibility for cutting wider slabs.
- Minimum Working Length :- The minimum working length is typically 1500 mm (59 inches). This length ensures the saw can handle long slabs for efficient ripping.
- Cutter RPM :- The saw operates at a high-speed 2800 RPM, allowing it to quickly and efficiently process wood, reducing cutting time and improving productivity.

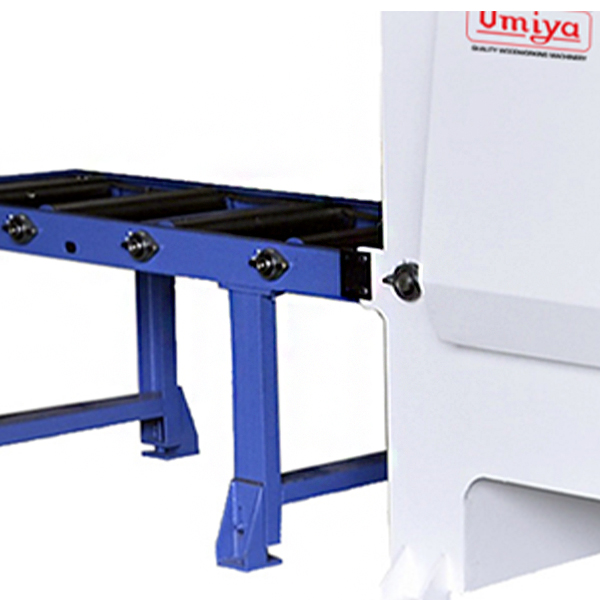

- Feeding System :- Equipped with a roller conveyor feeding system, it ensures smooth, automated movement of the wooden slabs through the machine. This helps reduce manual labor and increases efficiency in the production process.
- Feeding Speed :- The feeding speed is variable, allowing the operator to adjust the rate at which the wood is fed into the machine. This feature ensures optimal cutting quality for different wood types and thicknesses.
