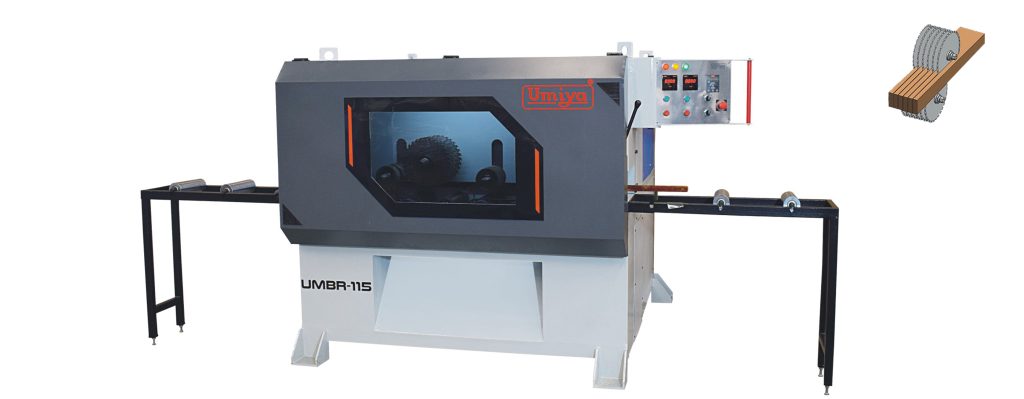

Multi Blade Rip Saw for wooden slab UMBR-115S
Purpose: These saws are designed for cutting wood slabs into thinner strips efficiently. They are commonly used in lumber mills and woodworking factories for ripping large boards into smaller, consistent widths.

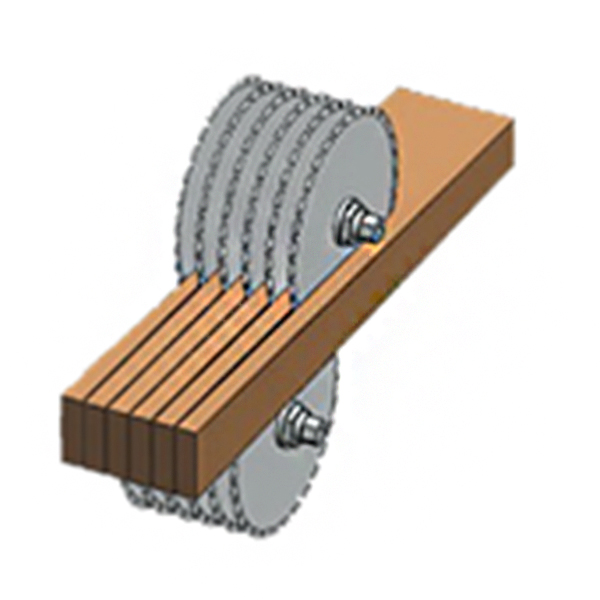

Multiple Blades: As the name suggests, these saws use multiple blades arranged in a set configuration. This allows for cutting multiple sections at the same time, improving efficiency and reducing the time needed for cutting large quantities of wood.
Adjustable Blade Spacing: Many models allow the user to adjust the distance between blades, which gives flexibility to cut different sizes of boards or slabs.
Power and Capacity: These saws typically have powerful motors, often in the range of 15-30 horsepower or more, depending on the machine’s size and the type of wood it is designed to cut.
Safety Features: Advanced models include various safety features such as automatic shutoff if a blade malfunctions, safety guards, and other mechanisms to protect the operator.
TECHNICAL SPECIFICATIONS:
| Specification | UMBR-115S | UMBR-150S | UMBR-200S |
|---|---|---|---|
| Max Cutting Thickness | 115 mm | 150 mm | 200 mm |
| Max Working Width | 200 mm (can feed 300 mm) | 200 mm (can feed 300 mm) | 200 mm (can feed 300 mm) |
| Min Working Length | 750 mm | 900 mm | 1500 mm |
| Cutter RPM | 2800 RPM | 2800 RPM | 2800 RPM |

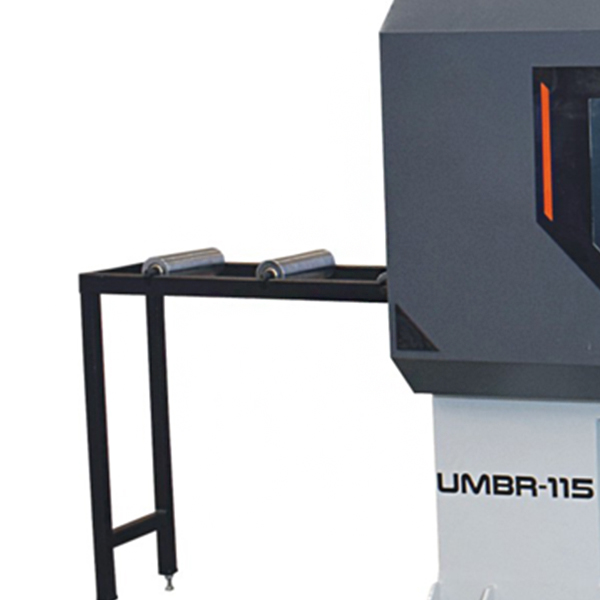

| Feeding System | Roller Conveyor | Roller Conveyor | Roller Conveyor |
| Feeding Speed | Variable | Variable | Variable |
| Feeding Motor | 3 HP | 3 HP | 5 HP |
| Motor Power Required | 20+25 HP | 30+40 HP | 40+40 HP |
| Total Power Required | 49 HP | 74 HP | 86 HP |
| Saw Blade | ⌀211*⌀50 | ⌀280*⌀50 | ⌀330*⌀50 |

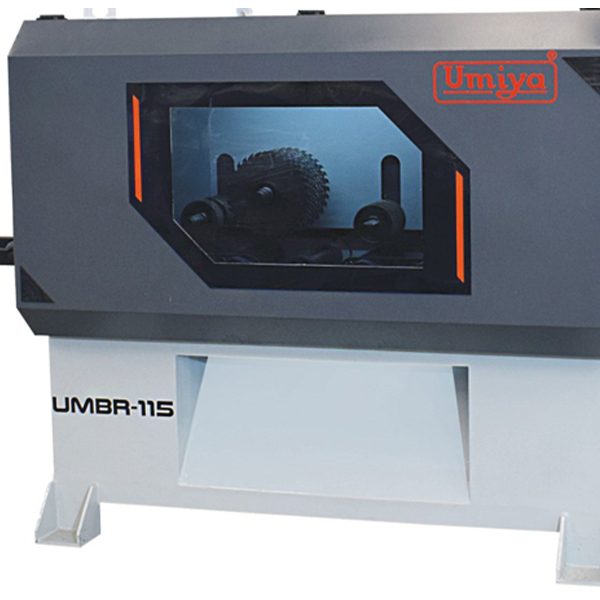

Images
The most important highlights at a glance
Features
- Powerful Motor: Typically equipped with a high-power motor to handle large slabs and maintain consistent cutting speed. This could range from 15-30 horsepower or more, depending on the model.
- Cutting Capacity : The machine is designed to handle thick wooden slabs, with a cutting capacity that can usually reach up to 100-150 mm (4-6 inches) or more, depending on the specific version.
- Feed Speed and Adjustment: The saw often includes adjustable feed speed mechanisms that help control the pace at which the wood is fed through the machine. This helps to optimize cutting efficiency and material yield.
