FEB -460PRE

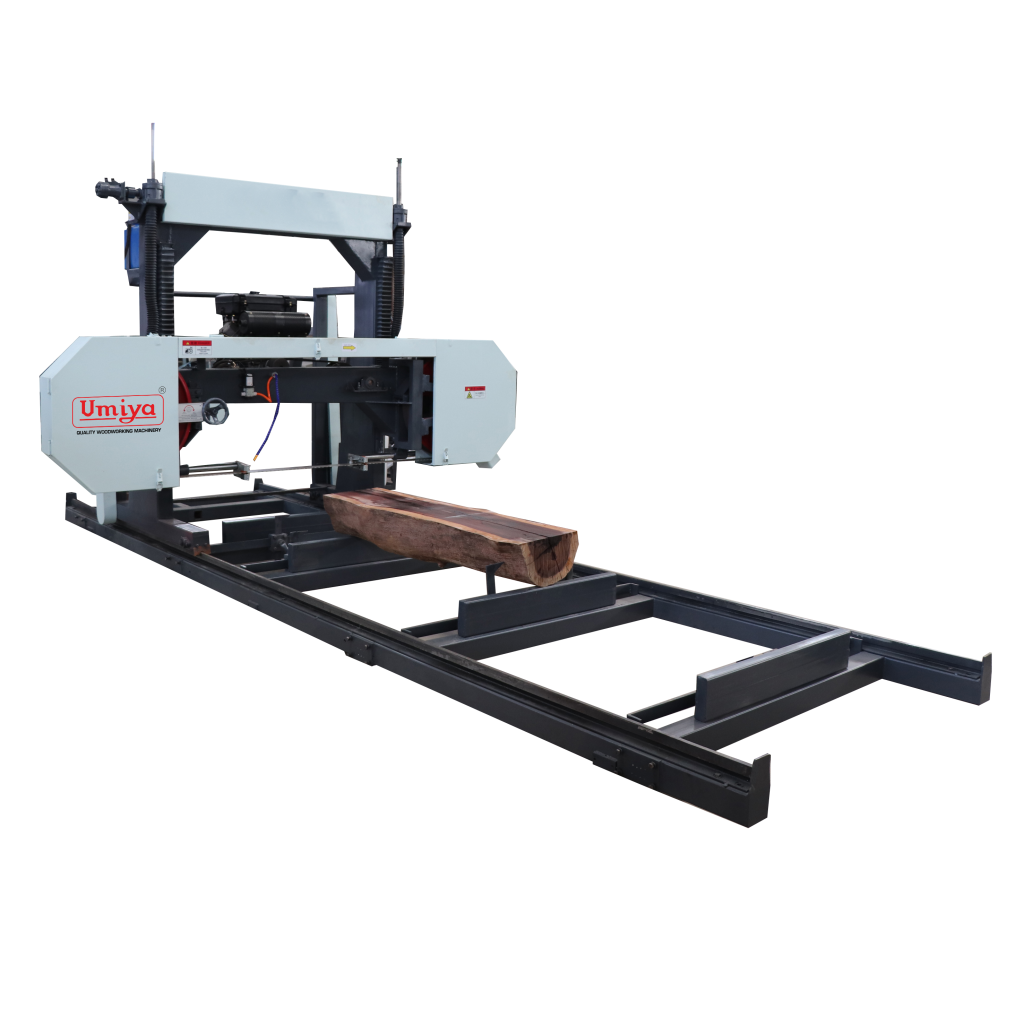

A heavy-duty portable sawmill is a robust machine designed to efficiently cut large logs into lumber. These sawmills are portable, allowing users to transport them to various work sites, making them ideal for forestry professionals, woodworkers, and DIY enthusiasts who need flexibility and power in lumber production.
Technical Data
| Model | UHSM-700 | UHSM-1000 | UHSM-1300 | UHSM-1600 |
|---|---|---|---|---|
| Max Sawing Wood Width | 700MM | 1000MM | 1300MM | 1600MM |
| Saw Wheel Diameter | 700MM | 700MM | 700MM | 700MM |
| Sawing Wood Thickness | 3-250MM | 3-300MM | 3-300MM | 3-300MM |
| Sawing Wood Length | 1300-4500MM | |||
| Rail Length | 5800MM | |||
| Main Motor Power | 15KW (20HP) | 18.5KW (25HP) | 22KW (29.5HP) | 30KW (40HP) |
| Up/Down Motor Power | 1.5KW (2HP) | 1.5KW (2HP) | 1.5KW (2HP) | 1.5KW (2HP) |
| Total Power | 22HP | 27HP | 31.5HP | 42HP |
| Saw Blade Length | 5500MM | 6100MM | 6600MM | 7100MM |
Features
- Durability: Built with heavy-duty materials to handle large logs and frequent use.
- Portability: Designed with wheels or lightweight construction for easy transport.
- Cutting Capacity: Capable of handling logs of significant diameter and length.
- Engine Power: Equipped with high-power gas, diesel, or electric motors for efficient cutting.
- Adjustability: Offers precise controls to achieve specific lumber thicknesses and dimensions.
- Accessories: Includes features like log ramps, clamps, and extension beds for improved usability.
- Safety: Built-in safety features such as blade guards and emergency stops.
Products Details

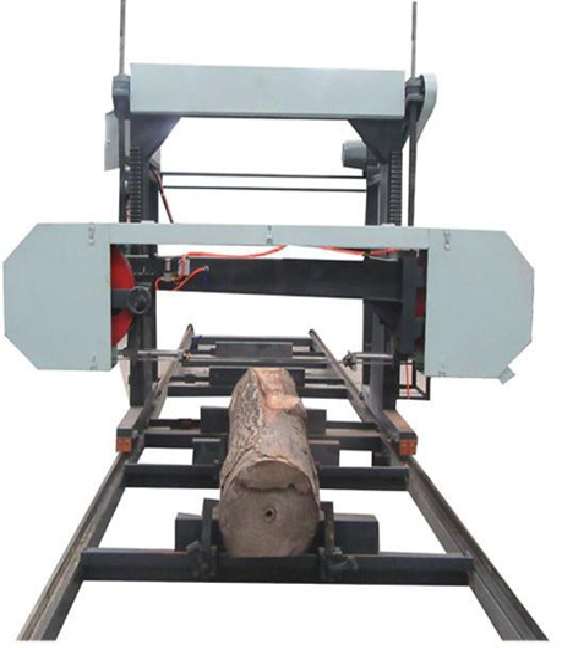

Heave Duty Structure

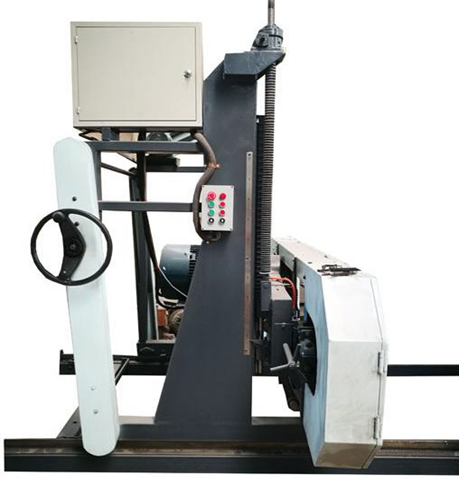

Hand wheel forward and backward, electric press button up/down sizing

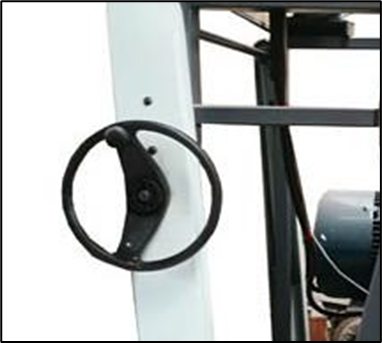

Manual Wheel for easy Forward/backward

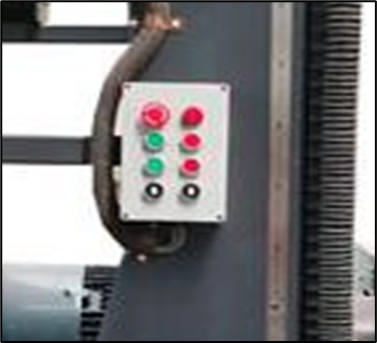

Electric Press Button Up/Down Sizing

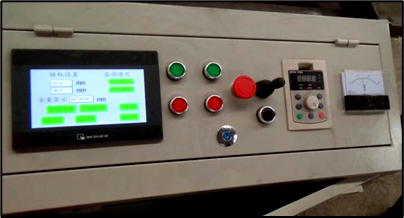

Touch Screen Sizing And Variable Frequency
Forward/backward (Optional)

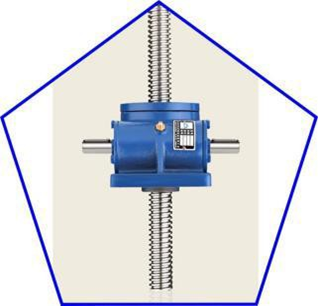

Linear Guide Way and precision screw Smooth and Accurate Sizing
