CNC Dovetail
Dovetail Shape: The dovetail joint is characterized by interlocking wedge-shaped pieces. The male (tail) parts of the joint are typically wider at the base and taper to a narrower top. The female (pin) parts are complementary, fitting precisely into the tails. This shape resists pulling apart under stress.
CNC Precision: Using a CNC router or milling machine allows for extremely precise cuts and angles. The machine follows a set of programmed instructions to create the dovetail profile, ensuring consistency across all parts, even for large production runs.
Set Up the CNC Machine: Once the toolpaths are ready, the material is loaded onto the CNC machine, and the correct cutter is installed. The workpiece is secured to the machine’s bed, usually using clamps, a vacuum table, or other fixtures.
TECHNICAL SPECIFICATIONS:

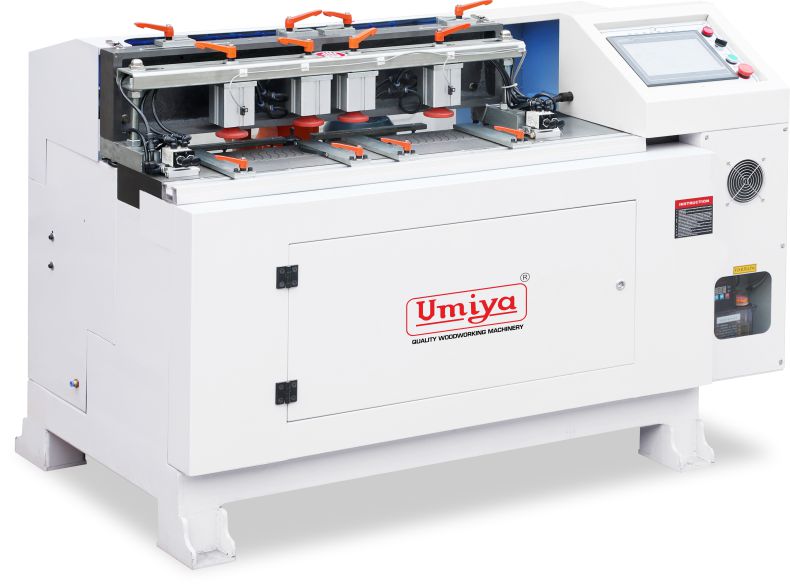

CNC Dovetail Features – UDT-600CNC
| Model | UDT-600CNC |
| Processing Width | 650 mm |
| Processing Thickness | 30 mm |
| Speed | 18000 rpm |
| No. of Axes | 2 |
| Installed Power | 3.7 kW |
Images
The most important highlights at a glance
Features
- Consistent Repetition: Once the machine is set up and programmed, it can repeatedly produce identical dovetail joints with consistent fit, ensuring uniformity in mass production.
- Minimal Wood Movement: Since the cuts are precise and uniform, the dovetail joints are less likely to suffer from wood movement issues, such as warping or misalignment over time.
- Reduced Setup Times: CNC machines can be quickly reprogrammed for different designs or joint configurations, reducing downtime between production runs.
- Cabinetry: Dovetail joints are a popular choice in cabinetry, especially for drawer boxes and dividers where strength and aesthetics are crucial.
