Description

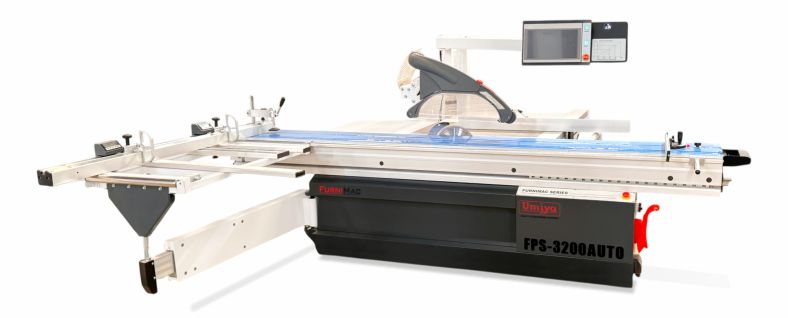

The Panel Saw FPS-3200 AUTO is a state-of-the-art woodworking machine designed to deliver precision, efficiency, and versatility in cutting operations. Engineered for professionals and industrial use, this panel saw offers advanced features that cater to complex and high-volume cutting requirements. Below, we provide a detailed description of its key components, functionalities, and benefits.
Technical Data
Machine Specifications
| Description | Parameter |
|---|---|
| Dimension of sliding table (LXW) | 3200 X 430mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1300mm |
| Main saw blade diameter | 300mmx30mm (Max 405mm) |
| Main saw blade speed | 4500/6000rpm |
| Tilting of saw blade | 90°-45°(Auto) |
| Max cutting depth at 90° (with scoring saw blade) | 80 mm |
| Max cutting depth at 45°(with scoring saw blade) | 50mm |
| Max cutting depth at 90° (without scoring saw blade) | 120mm |
| Max cutting depth at 45°(without scoring saw blade) | 84mm |
| Up-down movement of main saw blade | Auto |
| Main saw blade motor | 7.5HP |
| Scoring saw blade diameter | 120mmx20mm |
| Scoring saw blade speed | 8000rpm |
| Up-down movement of scoring saw blade | Manual |
| Scoring saw blade motor | 1HP |
| Total power | 8.5HP |
| Control interface | Touch Screen |
| Overall dimensions | 3600×3700×1800mm |
This is custom heading element
Features

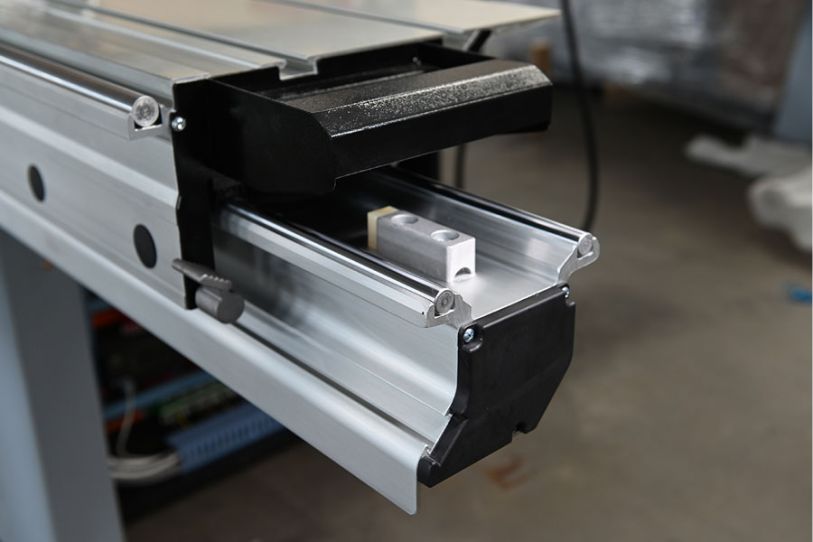

- Precise heavy-duty european slider 3200x435mm.

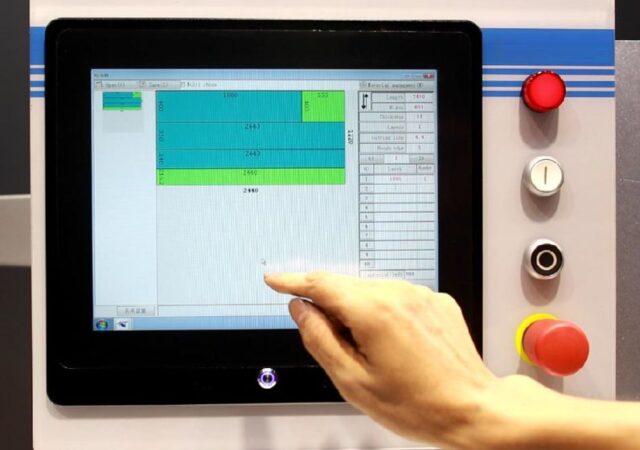

- Convenient HMIi design (touch screen) for operation.
- Rear fence is driven by servo motor.

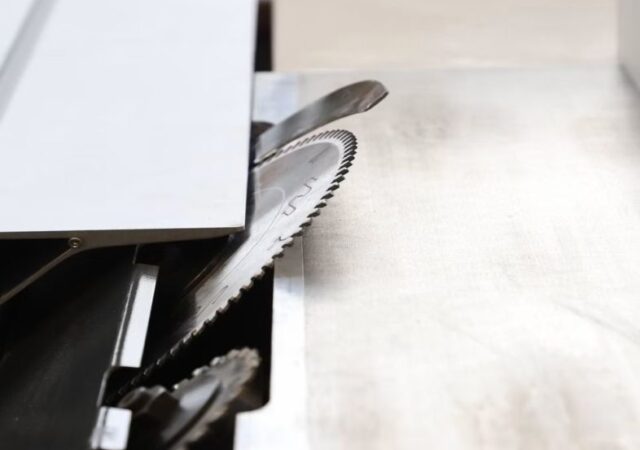

- Automatic motorize up and down for main saw and scoring saw,
- Automatic electrical saw blade tilting ,
- Can load up to 405mm saw blade.

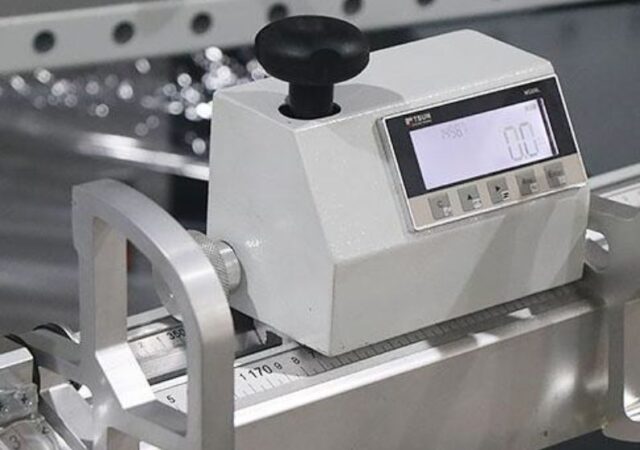

- With DRO meter for fences (Optinal)
- Extra support roller.
- Automatic oil lubrication pump
- Equipped with european style protection dust hood.
