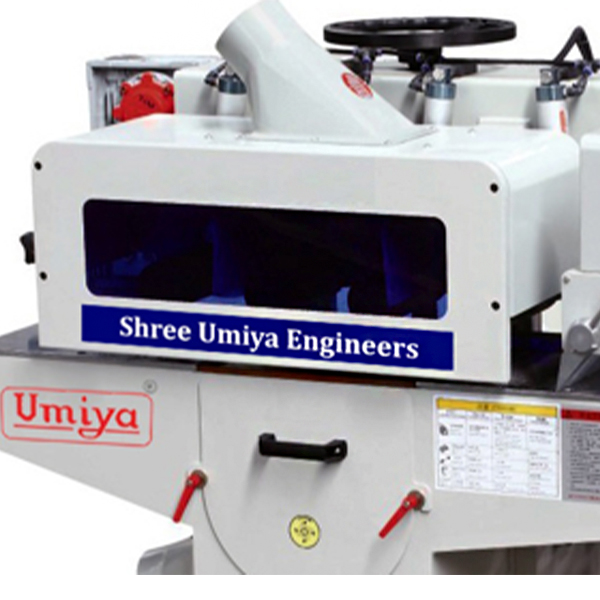

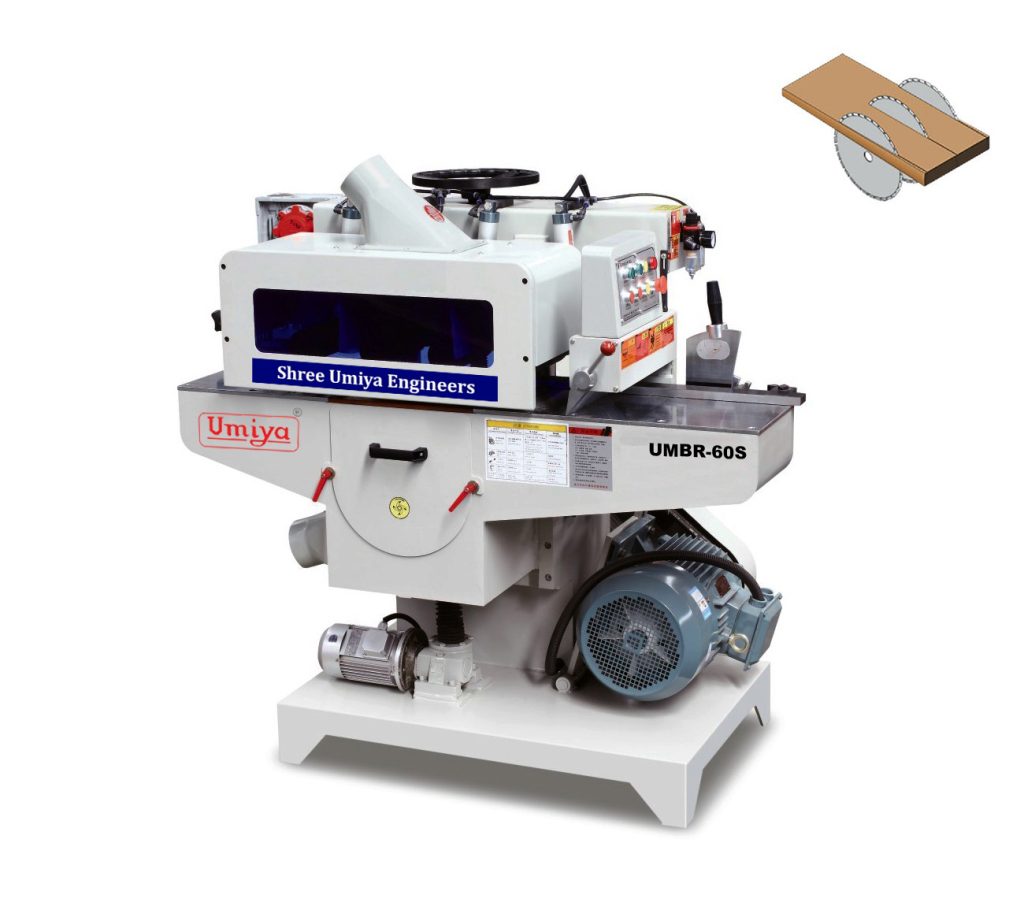

Multi Blade Rip Saw UMBR-60S
High-Speed Cutting: These machines are designed for high-speed cutting, providing fast and accurate results in applications where quick throughput is required, such as in large-scale lumber mills.
Adjustable Blade Spacing: Blade spacing can often be adjusted to suit the thickness of the wood being processed, which allows for a variety of cuts, from very thin strips to wider boards.
Powerful Motor: Multi-blade rip saws are equipped with powerful motors to ensure they can handle tough materials. The motor power ensures smooth and consistent cutting, even with dense hardwoods.
Precision Feed System: The machine typically includes a precision feed system that controls how wood is fed through the blades. This system ensures consistent cutting quality and minimizes defects in the cut pieces.

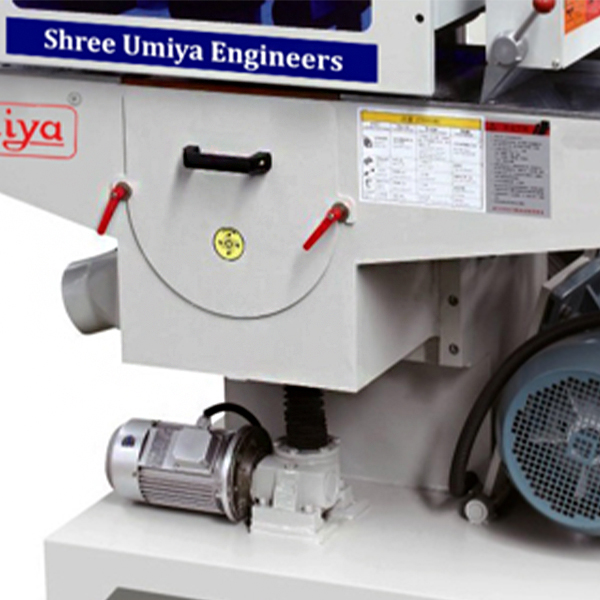

Material Handling and Safety Features: To manage the large quantities of wood processed by these machines, the UMBR-60S would likely be equipped with material handling systems like conveyors, rollers, and automatic feeding mechanisms. Additionally, safety features such as emergency stop buttons, blade guards, and dust collection systems are commonly included.
TECHNICAL SPECIFICATIONS:
Multi Blade Rip Saw Specifications
| Model | UMBR-60S | UMBR-80S |
|---|---|---|
| Max. Working Width | 180mm | 200mm |
| Max. Working Thickness | 60mm | 10-80mm |
| Min. Working Length | 200mm | 200mm |
| Spindle Speed | 3600 RPM | 3600 RPM |
| Spindle Dia. | Φ50 | Φ50 |
| Spindle Size | Φ255*Φ50 | Φ280*Φ50 |
| Feeding Speed | 3-16 m/min | 3-16 m/min |
| Main Motor Power | 11kw (15Kw Optional) | 15Kw (18.5Kw Optional) |
| Feeding Motor Power | 1.5kw | 1.5kw |
| Lifting Motor Power | 0.75kw | 0.75kw |
| Total Power | 13.25kw | 17.25kw |
| Air Pressure | 0.6Mpa | 0.6Mpa |
| Overall Dimension | 1600*980*1480mm | 1700*980*1500mm |
Images
The most important highlights at a glance
Features

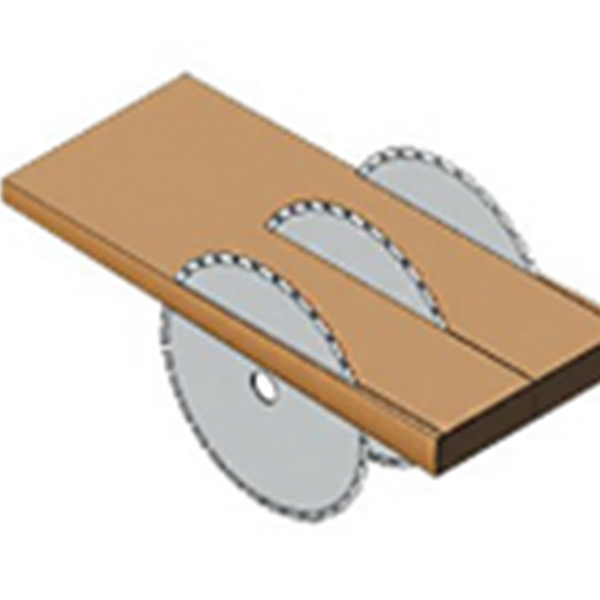

- Number of Blades: The UMBR-60S likely has a series of blades (often 6-10 or more) arranged in a multi-blade configuration. This allows for the cutting of multiple strips from a single piece of wood in a single pass.
- Blade Sizes: The blades are typically designed to handle various wood thicknesses and can be configured with different diameters based on the specific requirements of the material being cut.
- Customization: The blade spacing can be easily adjusted depending on the desired width of the cuts. This flexibility allows the saw to handle a variety of materials, ranging from thin veneer sheets to thicker timber.
- Precision: The fine adjustment of the blade spacing ensures consistent, accurate cuts with minimal waste, which is crucial for high-volume production.
- Fast Processing: Equipped with a powerful motor, the UMBR-60S is designed for high-speed cutting, ensuring that the machine can rip large quantities of wood efficiently.
- Continuous Operation: Its robust motor and cooling systems allow the saw to operate continuously for long hours without overheating, which is essential in industrial environments.
