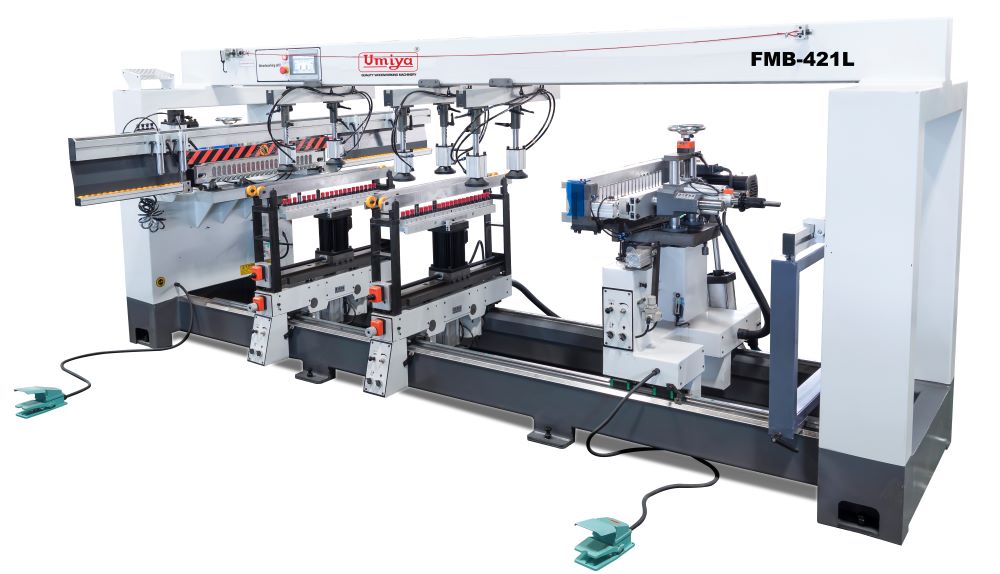

The FMB 421L is a high-performance drilling machine designed for precision and efficiency in industrial settings. It features a maximum hole diameter of 35mm with a single drill bit and 13mm with a multi-drill bit, and a drilling depth of 60mm. The machine operates with a 6kW motor and a spindle speed of 2840rpm, ensuring fast and reliable drilling. With 84 shafts (21×4 configuration), it excels in multi-tasking and high-volume production. Its processing area of 2500x640mm accommodates large workpieces, and its compact, durable design ensures long-term, low-maintenance operation in demanding environments.
Technical Data
| Description | Details |
|---|---|
| Max Hole Diameter | 35mm (single drill bit), 13mm (multi drill bit) |
| Max Drilling Depth | 60mm |
| Drill Fitting Diameter | 10mm |
| Max Processing Hole Distance (L×B) | 2500×640mm |
| Total Power | 6kW |
| Spindle Speed | 2840rpm |
| Total Number of Shafts | 21×4 = 84 |
| Overall Dimensions | 3950×2500×1560mm |
Features
- Industrial-grade drilling machine.
- Maximum hole diameter of 35mm with a single drill bit.
- Maximum hole diameter of 13mm with a multi-drill bit.
- Maximum drilling depth of 60mm.
- Compatible with 10mm drill fitting diameter.
