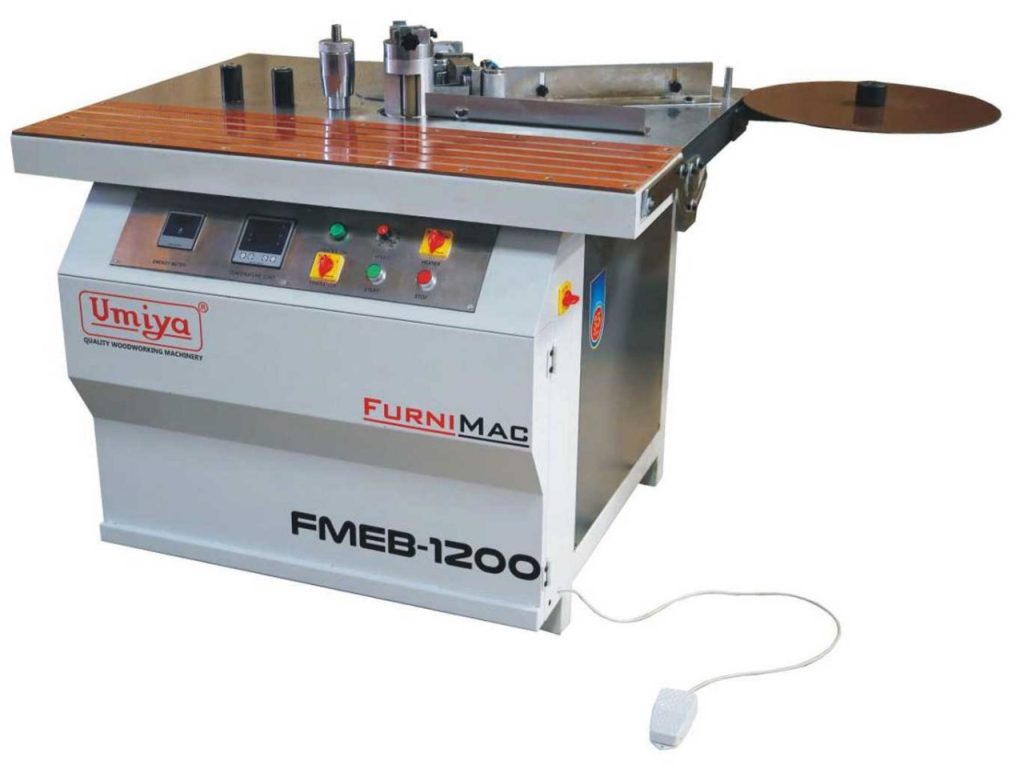

FMEB-1200
The FMEB-1200 is a manual edge banding machine designed to apply edge bands to straight panels, enhancing both the durability and aesthetics of furniture pieces. This machine is particularly suitable for small to medium-sized woodworking shops that require precision and efficiency in their edge banding processes.
Technical Data
| Description | Parameter |
|---|---|
| Table Size | 1200 x 920 mm |
| Work Piece Thickness | 10-60 mm |
| Edge Band Thickness | 0.5-3 mm |
| Glue Pot Capacity | Approx 3 KG |
| Heating Power | 3 KW |
| Motor Power | 1 HP |
| Feeding Speed | 5-10 m/min |
| Band Cutting Control | Foot Switch & Limit Switch |
| Air Pressure Required | 5-7 Kg/cm² |
| Band Coil Diameter | 525 mm |
Features
- Variable feed speed of edge banding.
- Swivel bar roller support for big width work piece.
- Aluminum glue pot with covering heat insulation material.
- Foot and micro cutting for edge cutting.
