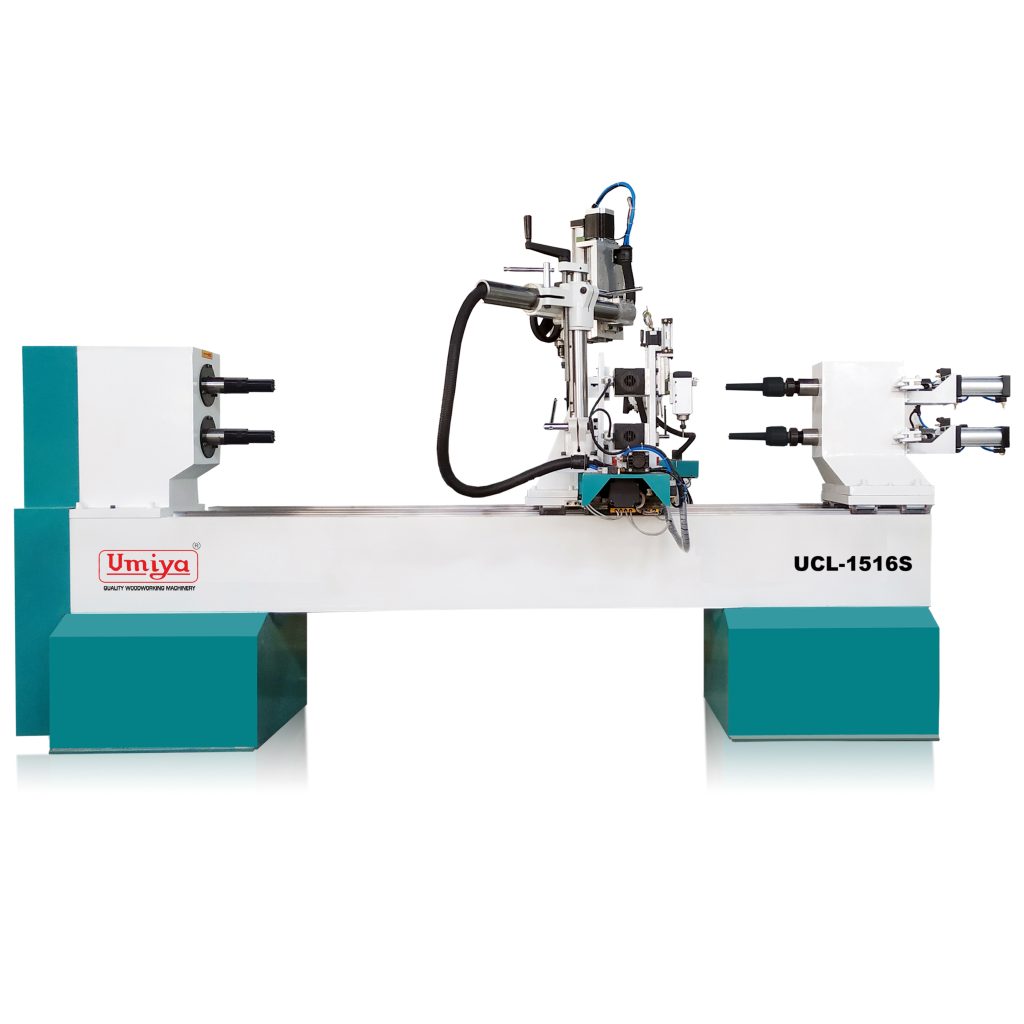

Double Head CNC Wood Turning Lathe
Two Spindles for Increased Productivity: With two independent spindles, a double-head lathe can work on both ends of a workpiece simultaneously, significantly reducing the time required to complete a turning job.
Simultaneous or Sequential Operations: The lathe may be programmed to perform operations simultaneously (on both ends of the piece) or sequentially (one end after the other).
CNC Programming: The operator inputs detailed specifications via a computer interface, defining aspects like speed, depth of cut, tool change points, and material type.
TECHNICAL SPECIFICATIONS:
Double Head CNC Wood Turning Lathe Specifications
| Specification | UCL-1516 | UCL-1516S |
|---|---|---|
| Max Processing Length | 1500mm | 1500mm |
| Max Turning Diameter | 160mm | 160mm |
| Air Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Max Feed Rate | 200cm/min | 200cm/min |
| Min Setting Unit | 0.01cm | 0.01cm |
| Transmission Type | Ballscrew for X, Z axis, Gear for Y Axis | Ballscrew for X, Z axis, Gear for Y Axis |
| Guider | Taiwan Make | Taiwan Make |
| Main Shaft Rotating Speed | 0-3000rpm | 0-3000rpm |
| Motor Power | 4kw | 4kw |
| Carving Spindle | – | 3.5kw*2 |
| Cutter Material | Super Hard Alloy | Super Hard Alloy |
| Control System | DSP Control System | DSP Control System |
| Motor | Stepper Motor | Stepper Motor |
| Hand Controller Recognize File | *.dxf | *.dxf |
| Power Supply | 380V 50Hz 3Phase | 380V 50Hz 3Phase |
Images
The most important highlights at a glance
Features
- CNC Control System: The brain of the machine, often powered by a sophisticated software like Siemens, Fanuc, or similar, which enables the operator to program precise movements and tool changes.

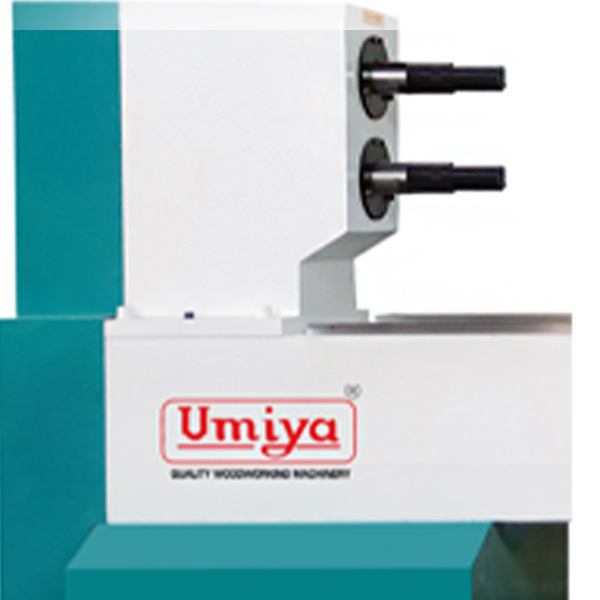

- Spindle/Head: There are two independent spindles that can rotate the workpiece. These are the primary axes responsible for turning the wood.

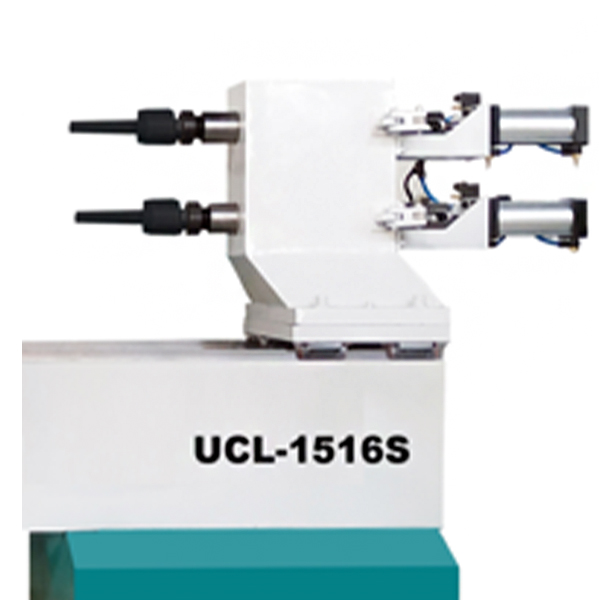

- Tailstock: Holds the workpiece in place and provides support, particularly for longer pieces.

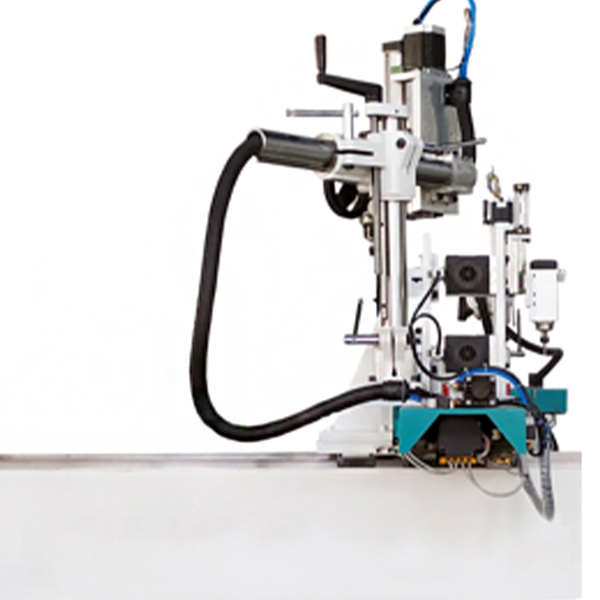

- Tool Holders and Tools: A range of turning tools, including roughing, finishing, and specialty tools, are used for various wood turning tasks.
