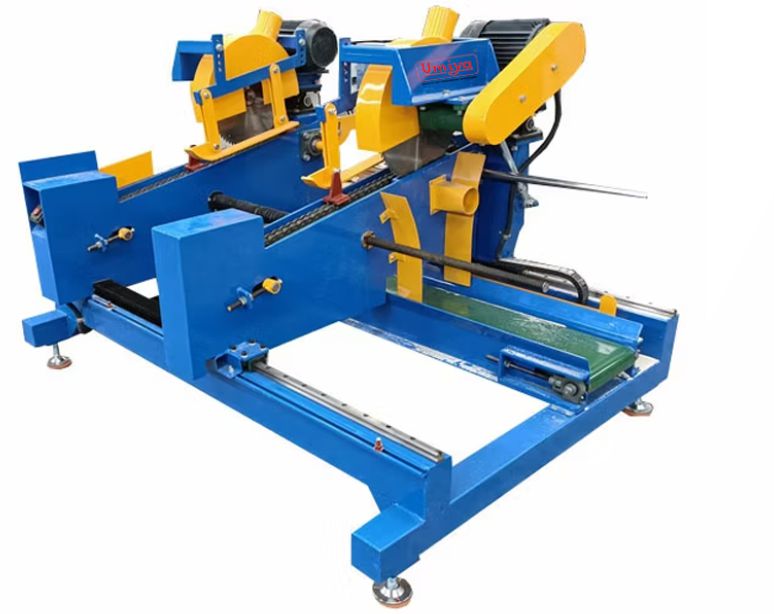

Double End Trim Saw
A Double End Trim Saw is a woodworking machine designed to trim both ends of timber or lumber simultaneously, improving the speed and efficiency of the cutting process. It is commonly used in pallet production, furniture manufacturing, and other industries that require precision cutting of wooden materials. This machine ensures that both ends of the material are cut to the desired length and shape, providing consistency and minimizing waste.
TECHNICAL SPECIFICATIONS:
| Specification | Value |
|---|---|
| Sawing Length | 600-1550mm (Can be customized) |
| Sawing Thickness | 10-100mm |
| Sawing Width | 10-200mm |
| Total Power | 8HP |
| Size | 2600x2000x1100mm |
Features
- High Efficiency: Trims both ends of lumber simultaneously for faster processing.
- Adjustable Cutting Range: Supports saw lengths from 600mm to 1550mm, customizable to needs.
- Versatile Cutting Dimensions: Accommodates thicknesses from 10mm to 100mm and widths from 10mm to 200mm.
- Powerful Operation: Powered by an 8HP motor for robust performance.
- Compact Size: Designed with a compact footprint of 2600x2000x1100mm for efficient space usage.
